WATER HEATERS
Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.
Disclaimer: Images may not always be accurate to the part #
If you do not find what you are looking for, contact us.

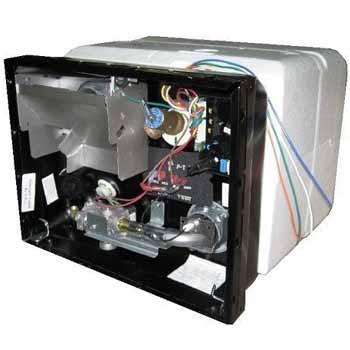

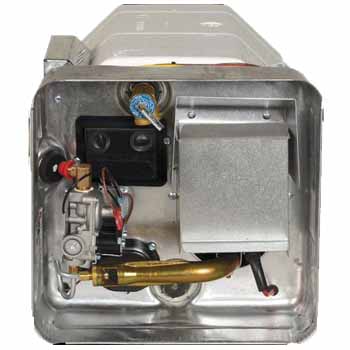

Suburban 6-Gallon Water Heaters
- Dimensions: 12 11/16″ H x 12 11/16″ W x 19 3/16″ D
- One-piece, die-formed metal housing
- Fitted copolymer heat retention jacket
- Extended anode rods
Direct Spark Ignition (“D” Model)
- LP Gas Operation only
- Operated with switch on unit or interior mounted ON/OFF switch
| PART NUMBER | DESCRIPTION |
| SBN5238A | Suburban Model SW6D, 6 gal 12,000 BTU/h Water Heater |
| SBN5242A | Suburban Model SW10D, 10 gal 12,000 BTU/h Water Heater |
Direct Spark Ignition with Electric Element (“DE” Model)
- LP Gas Operation plus 1440-Watt Incoloy AC Electric Element
- Electric Operated with switch on unit and LP Gas with interior mounted on/off switch
| PART NUMBER | DESCRIPTION |
| SBN5239A | Suburban Model SW6DE, 6 gal 12,000 BTU/h Water Heater |
| SBN5243A | Suburban Model SW10DE, 10 gal 12,000 BTU/h Water Heater |
| SBN5247A | Suburban Model SW12DE, 12 gal 12,000 BTU/h Water Heater |
GAS APPLIANCES MUST BE INSTALLED BY A QUALIFIED SERVICE TECHNICIAN

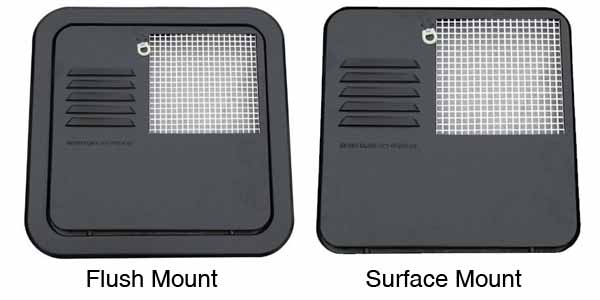

Suburban Water Heater Doors
| PART NUMBER | DESCRIPTION |
| SBN6261APW | Suburban Surface Mount, 6 Gal. Water Heater Door – Polar White |
| SBN6255AEB | Suburban Flush Mount, 6 Gal. Water Heater Door – Black |
| SBN6279AEB | Suburban Surface Mount, 6 Gal. Water Heater Door – Black |
| SBN6255ACW | Suburban Flush Mount, 6 Gal. Water Heater Door – Colonial White |
| SBN6255APW | Suburban Flush Mount, 6 Gal. Water Heater Door – Polar White |
| SBN6255AEB | Suburban Surface Mount, 6 Gal. Water Heater Door – Black |
| SBN6259ACW | Suburban Flush Mount w/ Frame, 10/12/16 Gal. Water Heater Door – Colonial White |
| SBN6259APW | Suburban Flush Mount w/ Frame, 10/12/16 Gal. Water Heater Door – Polar White |
| SBN6259AEB | Suburban Flush Mount, 10/12/16 Gal. Water Heater Door – Black |
Suburban 6-Gallon Water Heater Switches
| PART NUMBER | DESCRIPTION |
| SBN234589 | On/Off Switch For Suburban 6-Gallon “D” & “DE” Models, White |

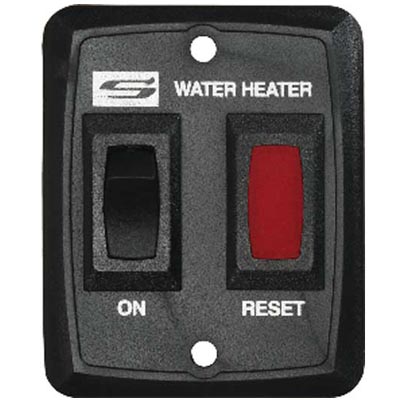

| SBN234229 | On/Off Switch For Suburban 6-Gallon “D” & “DE” Models, Black |
| SBN232882 | On/Off Switch For Suburban 6-Gallon “DEL” 12v Models, White |
| SBN233111 | On/Off Switch For Suburban 6-Gallon “DEL” 12v Models, Black |
Suburban 12 Gallon Water Heaters
- Size: 16 7/32” High X 16 7/32” Wide X 22 ¼” Deep
- Suburban 12 Gallon Water Heaters, pilot ignition. LP Gas.
- Door ordered separately
- Does NOT include ON/OFF Switch
| PART NUMBER | DESCRIPTION |
| SBN5247A | Suburban Model #SW10DE 6-Gallon RV Water Heater, DSI & 110v Electric Dimensions: 16 7/32” High X 16 7/32” Wide X 22 ¼” Deep |
GAS APPLIANCES MUST BE INSTALLED BY A QUALIFIED SERVICE TECHNICIAN

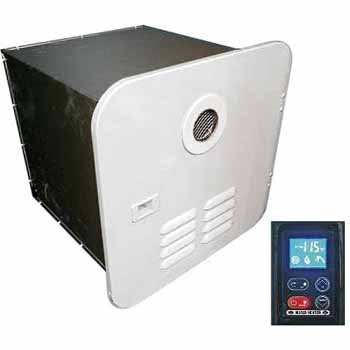

Suburban Advantage Tankless Continous Water Heaters
| PART NUMBER | DESCRIPTION |

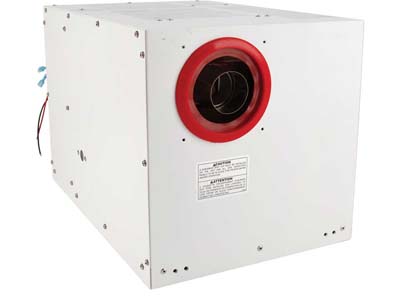

| SBN5581A | Suburban Tankless continous water heater 12.5″H x 12.5″W x 20.5″D |
- Upgrade any 6, 10, 12 or 16 gallon RV tank hot water heater
- Enjoy consistend water temperature: Micro-processor controlled
- Self modulating, combustion system regulates LP gas input from 36,000 BTU first stage and the 60,000 BTU stage to maintain the desired temperature setting
- To complete installation you’ll need the following accesories (sold separately); digital thermostat control center, replacement access, vent exhaust cap and water heater on/off switch.

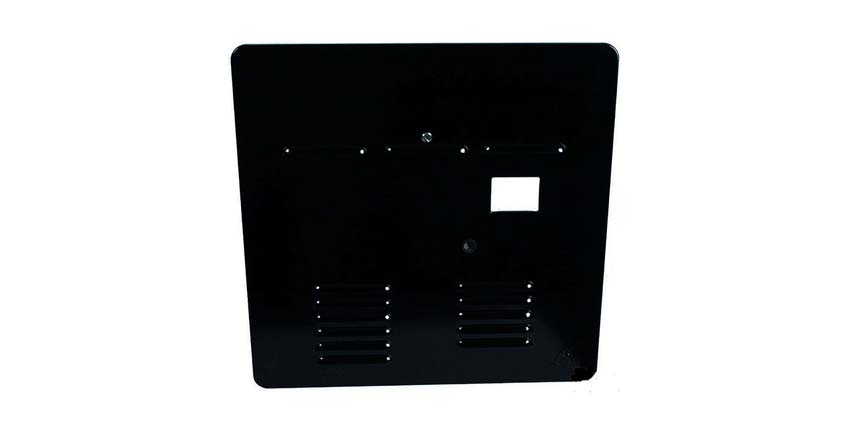

Replacement Access Doors
If you’re replacing an existing Suburban or Dometic/Atwood hot water heater with the Suburban tankless water heater, you will need on of these replacement access door as well as a vent cap and power switch. (Sold Separately)
- The replacement panel properly aligns and maintains the vent cap connection into the heater exhaust port.
- Access panel dimensions: 15″ x 14.9″
| PART NUMBER | DESCRIPTION |
| SBN6376APW | Suburban 6 gal. Replacement panel – Polar White |

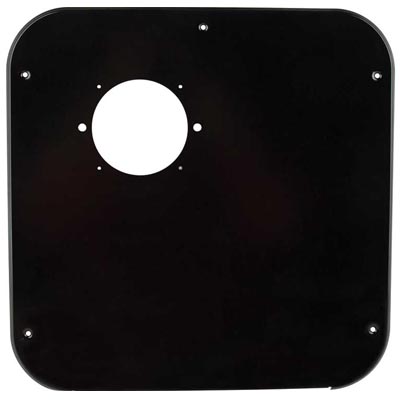

| SBN6276AEB | Suburban 6 gal. Replacement panel – Black |

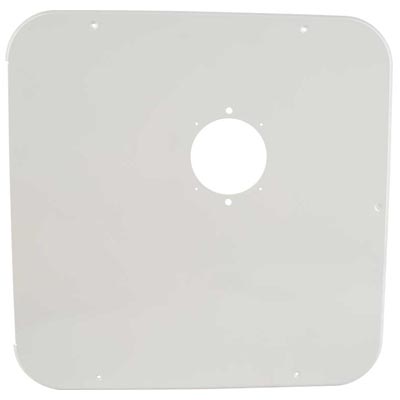

| SBN6377APW | Suburban 10,12 or 16 gal. Replacement panel – Polar White |
| SBN6277AEB | Suburban 10,12 or 16 gal. Replacement panel – Black |

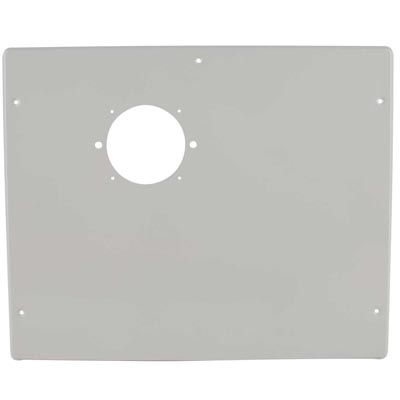

| SBN522147 | Dometic/Atwood Style 6 gal. Replacement panel – Polar White |
| SBN522150 | Dometic/Atwood Style 10 gal. Replacement panel – Polar White |
Suburban Advantage Tankless Control Center
For use with new or existing Suburban tankless water heaters
Dimensions: 6″ x 4″ x 3″
| PART NUMBER | DESCRIPTION |

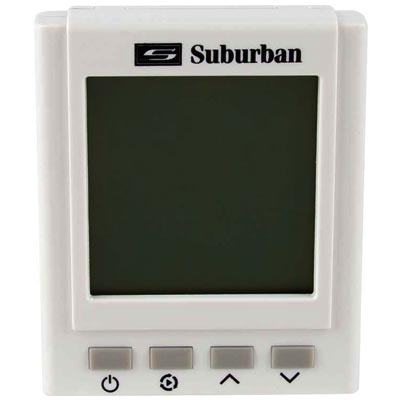

| SBN162291 | Suburban On Demand digital thermostat (Control Center) – White |
| SBN162292 | Suburban On Demand digital thermostat (Control Center) – Black |

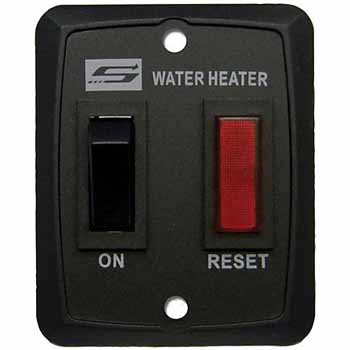

Water Heater (Interior) ON/OFF Switch
Switch operates LP Gas heating only
| PART NUMBER | DESCRIPTION |
| SBN234589 | Suburban OEM RV Water Heater ignition switch – White |
| SBN234229 | Suburban OEM RV Water Heater ignition switch – Black |
Exhaust Vent Caps
Dual-tube construction exhausts combustion gasses to the outside and draw fresh intake air into the chamber. Vent cap size is determined by the RV walls thickness
| PART NUMBER | DESCRIPTION |
| SBN261616 | 1″ vent cap for 0″ – 1″ wall thickness |

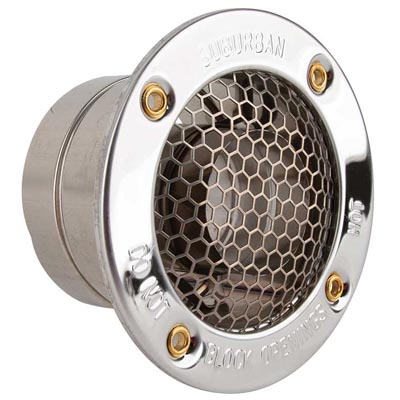

| SBN261617 | 2″ vent cap for 1″ – 2″ wall thickness |
| SBN261618 | 3″ vent cap for 2″ – 3″ wall thickness |
GAS APPLIANCES MUST BE INSTALLED BY A QUALIFIED SERVICE TECHNICIAN

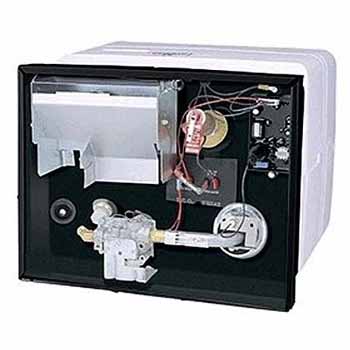

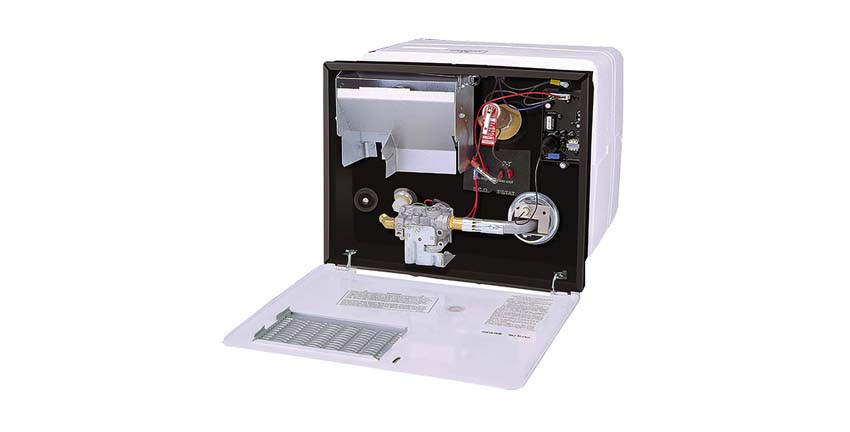

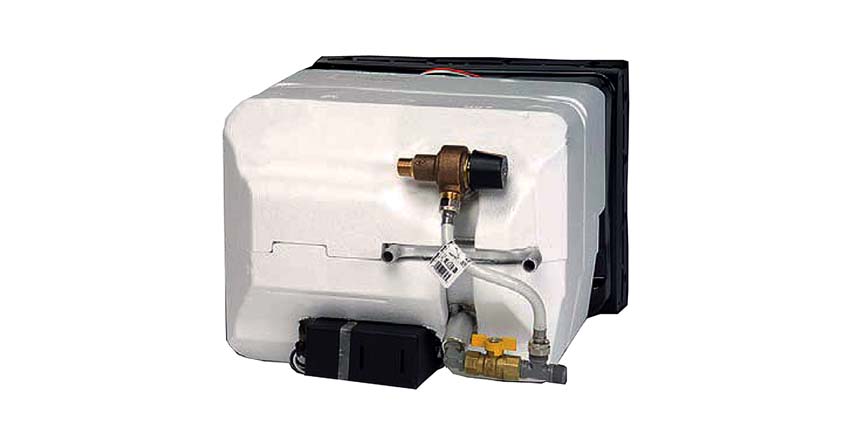

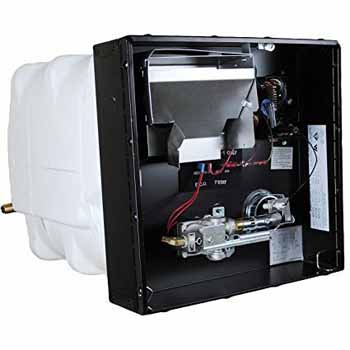

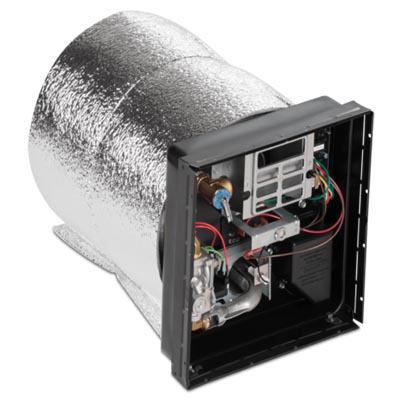

Dometic 6-6XT* Gallon Water Heaters
Door available in black or white
- Dimensions: 12.62″ H x 12.62″ W x 19″ Deep
- XT Model Dimensions: 12.62″ H x 12.62″ W x 24″ Deep
- Robust burner system generates hot water quicker
- Provides longer showers and recycling time
- Water heater access door are sold separately
| PART NUMBER | DESCRIPTION |
| 94001SP | Dometic WH-6GA SP, 6 gal. Water Heater DSI (Gas only) |
| 94002SP | Dometic WH-6GEA, 6 gal. Water Heater DSI, LP Gas & Electric |
| 94003SP | Dometic WH-9GEA XT*, 6 gal. Water Heater, DSI, LP Gas & Electric |
GAS APPLIANCES MUST BE INSTALLED BY A QUALIFIED SERVICE TECHNICIAN
Access doors are available in black or white
* The XT Model produces more continous hot water by mixing water heated to a higher temperature then mixing it with cold water, increasing the capacity to 9 gallon equivalent.
Dometic 6-Gallon Water Heater Doors
Door dimensions: 1/4″ x 15″ W x 15″ W
| PART NUMBER | DESCRIPTION |

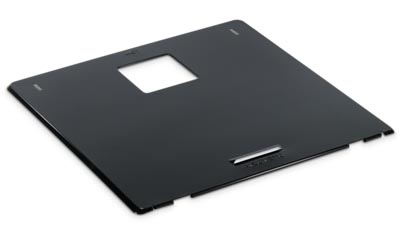

| 94010 | Dometic 10 gal Water Heater Door Assembly, Black Single Latch |
| 94965 | Dometic 10 gal Water Heater Door Assembly, Black Double Latch |
| 94970 | Dometic 10 gal Water Heater Door Assembly, White Single Latch |
- Dimensions: 15 3/4″ H x 15 3/4″ W x 21″ D
- XT Dimensions: 15 3/4″ H x 15 3/4″ W x 25″ D
- Robust burner system generates hot water quicker
- Provides longer showers and short recycling time
- Low maintenance
Note: Water heater door & 12V switches are sold separately
| PART NUMBER | DESCRIPTION |
| 95001SP | Dometic WH-10GEA SP 10 Gal Water Heater (Gas & Eletric) |
| 95002SP | Dometic WH-10GEA XT 10 Gal XT* Water Heater (Gas & Eletric) |
GAS APPLIANCES MUST BE INSTALLED BY A QUALIFIED SERVICE TECHNICIAN
* The XT Model produces more continous hot water by mixing water heated to a higher temperature then mixing it with cold water, increasing the capacity to 16 gallon equivalent.
Dometic 10 Gallon Water Heater Access Doors
| PART NUMBER | DESCRIPTION |

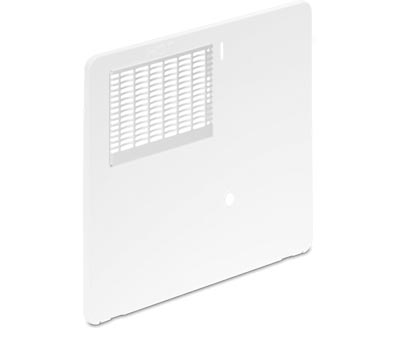

| 91385 | Dometic 10 Gal Legacy Single Latch Door Assembly – Arctic White |

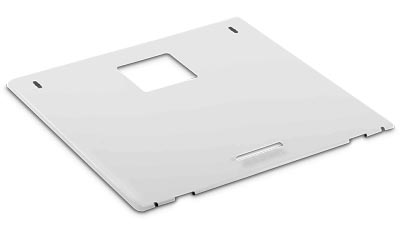

| 95505 | Dometic 10 Gal Current Model Double Latch Door Assembly – Arctic White |
| 95500 | Dometic 10 Gal Current Model Double Latch Door Assembly – Black |

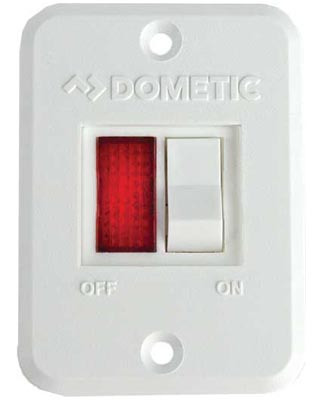

Application: 6 Gallon or 10 Gallon Water Heaters
| PART NUMBER | DESCRIPTION |

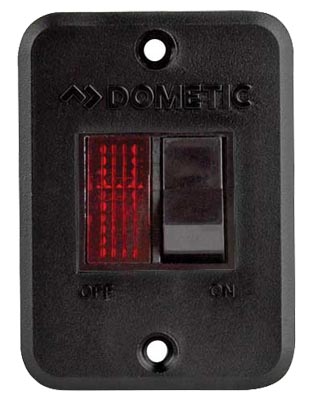

| 91959 | Single Switch Kit for Water Heaters prior to 10 Gal 4E & 6 Gal 10E Models – Black |
| 91230 | Dual Switch Kit replacement for older water heater combo units (gas or electric). For use on any models, 10 gal 4E and 6 gla 10E or newer – White |

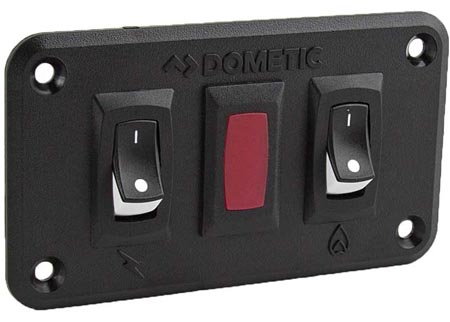

| 91270 | Dual Switch Kit replacement for older water heater combo units (gas or electric). For use on any models, 10 gal 4E and 6 gla 10E or newer – Black |
