VIN NUMBER
In order to provide boat trailer parts, we need to know the VIN/serial number of your EZ Loader boat trailer.
VIN NUMBER LOCATION
The VIN/serial number is usually located either on the side of the trailer frame behind the tongue, or on the right tail light.
TRAILER DELIVERY
Trailer Canada does not ship or deliver trailers.
All trailers are F.O.B. St. Paul, Alberta
EZ Loader Boat Trailer Serial Number
If your serial number begins with “1L8” instead of “1ZE“, the trailer was built by the EZ Loader’s Custom Division.
Please call 1-800-553-7855 for assistance as we do not have access to the custom division parts.
Model: EZR 17-20 3100
If you do not find what you are looking for, fill up this Inquiry Form or contact us.
Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.
Disclaimer: Images may not always be accurate to the part #
EZ LOADER OIL BATH CAP
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-034388 | Oil Bath Cap 2 1/8″ |
EZ LOADER 5 ON 4 1/2" HUB KIT
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-029533 | 5 on 4 1/2″ Hub Kit |
Comes with: Bearing Kit (L44649 2pcs) & Oil Cap (1pc)
EZ LOADER 5 ON 4 1/2" IDLER HUB KIT
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-029534 | 5 on 4 1/2″ Idler Hub Kit |
Comes with: Bearing Kit (L68149 & L44649) & Oil Cap (1pc)
EZ LOADER 5 ON 4 1/2" HUB KIT
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-020883 | Hub Kit BT150A Grease Type |
EZ LOADER O RING
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-034392 | O-Ring |
EZ LOADER PLUG 1/8"
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-034129 | Plug 1/8″ |

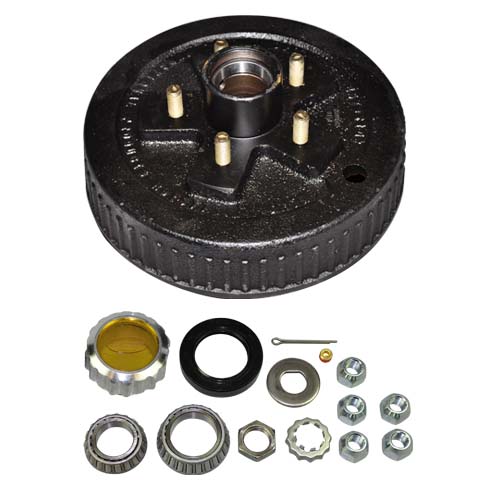

HUB & DRUM KIT 10" OIL
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-029537 | Hub & Drum Kit 10″ Oil |

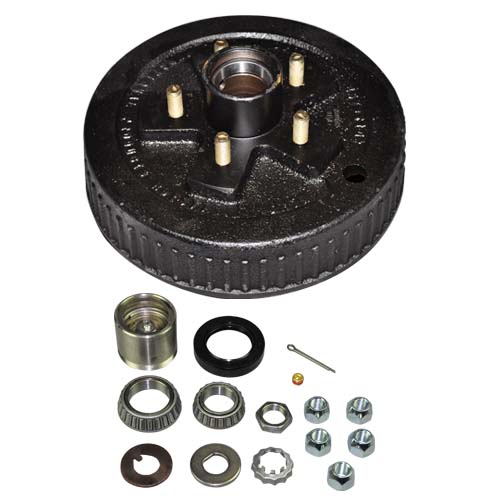

HUB & DRUM KIT 10" GREASE
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-031803 | Hub&Drum Kit 10″ Grease |

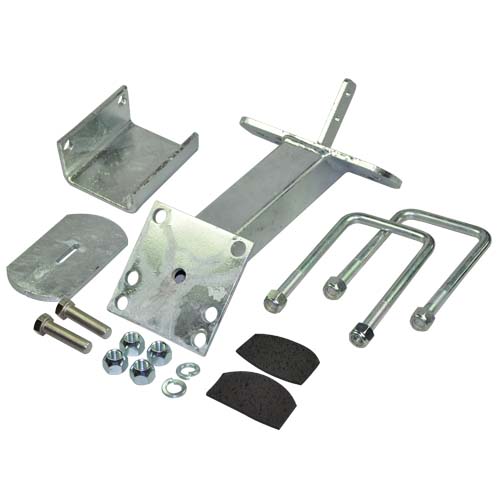

SPARE TIRE CARRIER (4.5x3" I-TUBE)
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-033534-10 | Spare Tire Carrier Asm |

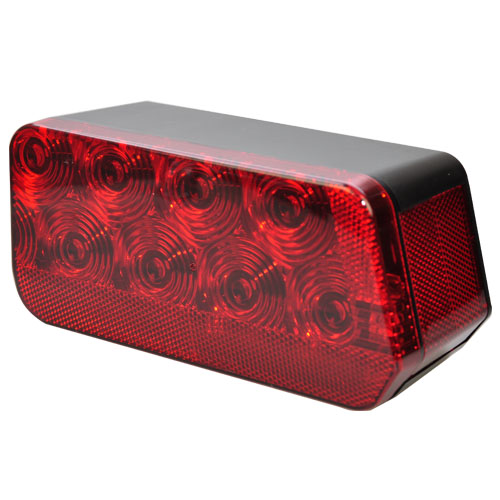

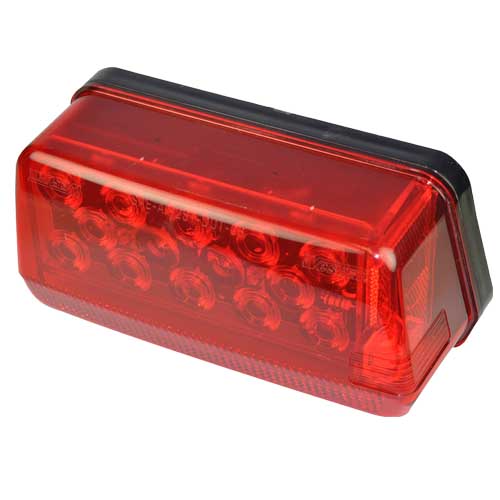

EZ LOADER TAIL LIGHT LED COMPOSITE
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-032133 | Tail Light LED (LT) |
| 250-032132 | Tail Light LED (RT) |
EZ LOADER COMPLETE TAIL LIGHT W/ HARDWARE
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-027978 | Complete Tail Light (RH) |
| 250-027977 | Complete Tail Light (LH) |

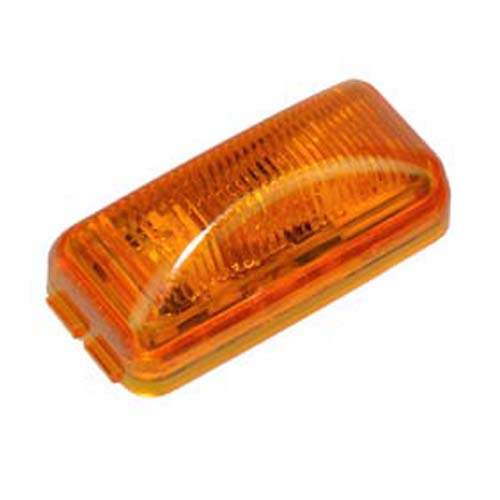

EZ LOADER LED LIGHT AMBER
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-032130 | Amber LED 2 ½” x 1 ¼“ |
Grommet sold separately

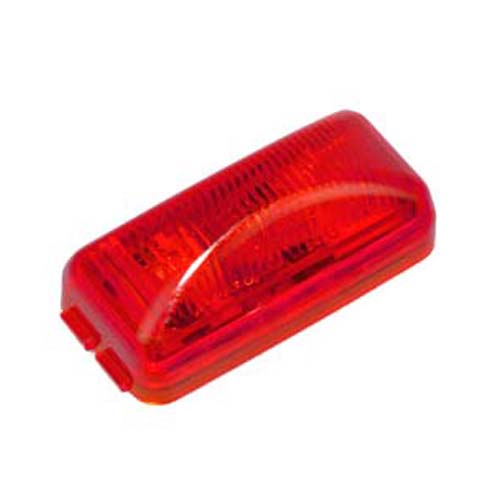

EZ LOADER LED LIGHT RED
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-032131 | Red LED 2 ½” x 1 ¼“ |
Grommet sold separately

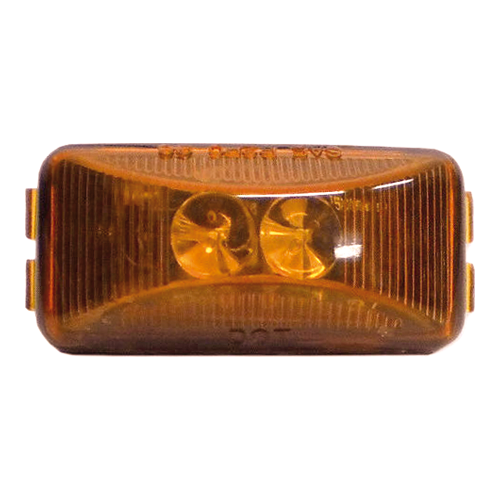

EZ LOADER LED LIGHT AMBER (OFF SHORE)
| PART NUMBER | DESCRIPTION |
|---|---|
| J-5735A | Amber LED 2 ½” x 1 ¼“ |
Cheaper alternative to 250-032130. Grommet sold separately.

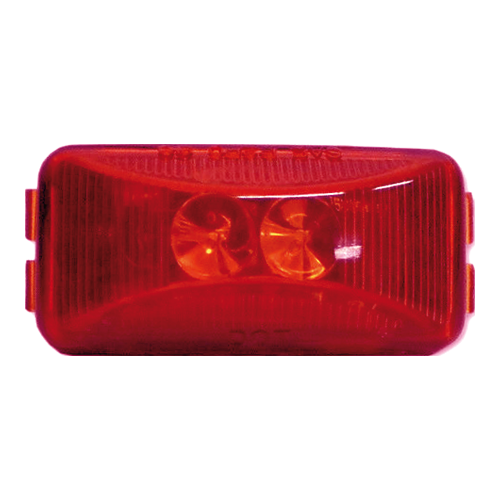

EZ LOADER LED LIGHT RED (OFF SHORE)
| PART NUMBER | DESCRIPTION |
|---|---|
| J-5735R | Red LED 2 ½” x 1 ¼“ |
Cheaper alternative to 250-032131. Grommet sold separately.

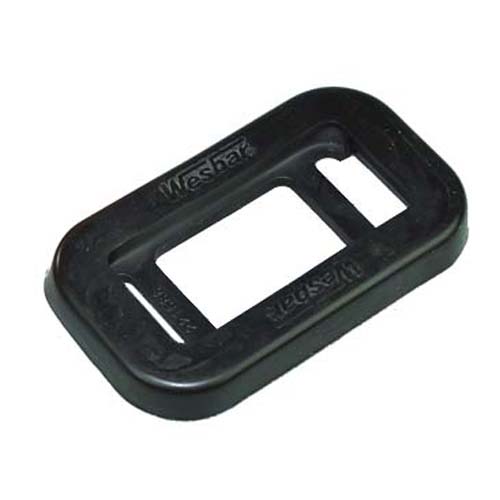

EZ LOADER GROMMET
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-032127 | Rubber Grommet |

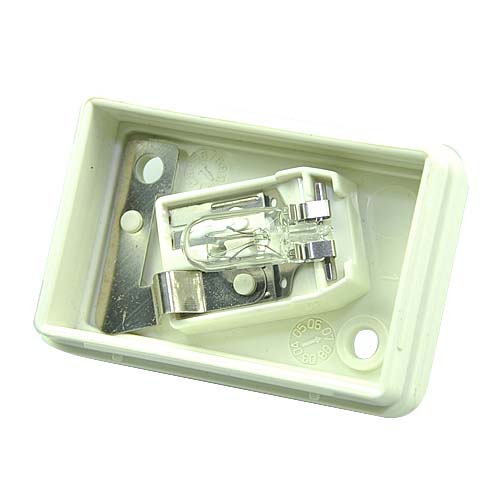

CAP BASE FOR 250-028891
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-028890 | Base for 250-028891 |
Dimensions: 2 ½” x 1 ¾”. Incandescent Bulb.

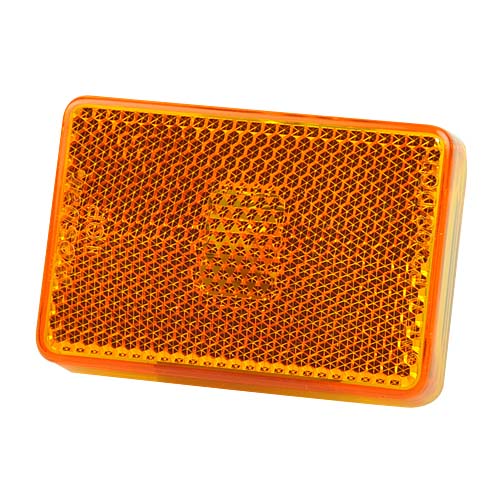

LIGHT FRONT SIDEMARKER LENS AMBER
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-028891 | Sidemarker Lens Amber |
Dimensions: 2 ½” x 1 ¾”

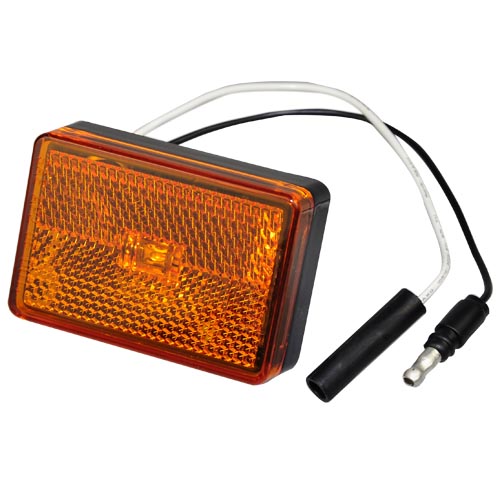

LIGHT LED AMBER TONGUE 6"
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-032135 | Light LED Amber Tongue 6″, c/w Wire w/ Plugs |

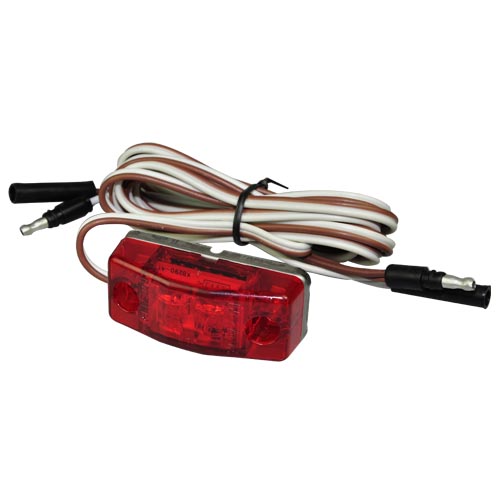

RED LIGHT PIGTAIL w/ PLUG
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-032129 | Red LED Light Pigtail w/ Plug |
For Pontoon Boat Trailer

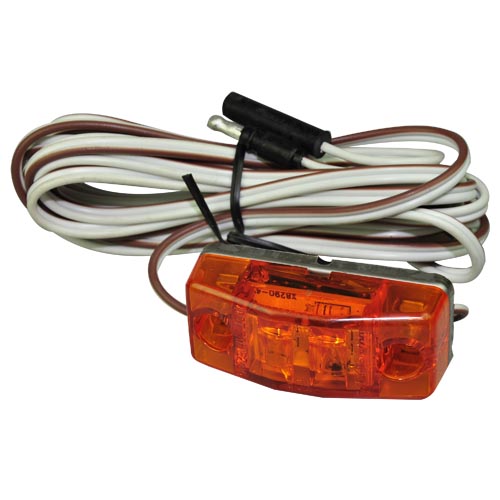

AMBER LIGHT PIGTAIL w/ PLUG
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-032128 | Amber LED Light Pigtail w/ Plug |
For Pontoon Boat Trailers

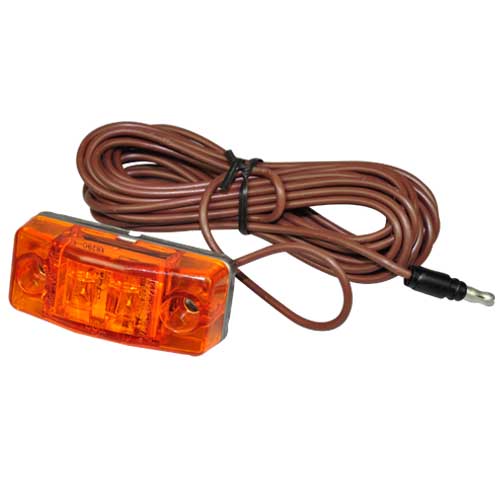

CLEARANCE LIGHT AMBER
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-032128-11 | Clearance Light Amber LED 162″, Pigtail w/ Plug |
WHEEL BEARING KIT BT 150/151
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-020885 | Wheel Bearing Kit BT 150/151, Straight Spindle |
Kit Includes: L44649 (2), L44610 (2), Cotter Pin & Seal #12194TC

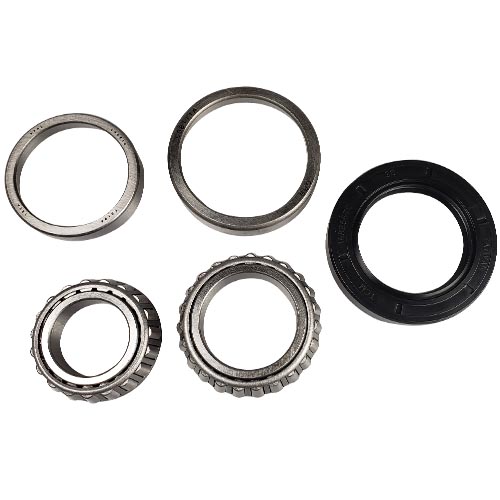

WHEEL BEARING KIT 5-LUG TAPPERED SPINDLE
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-015907 | Wheel Bearing Kit for HB1000 Hub, 5 Bolt |
Kit Includes: L68149, L44649, L68111, L44610 & Seal #168255TC

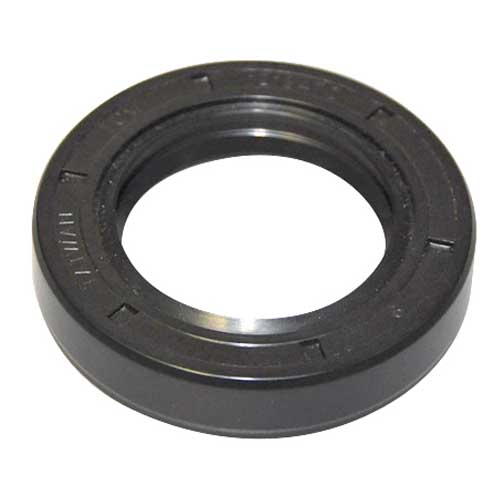

SEAL (#12194TC)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-015208 | Seal (#12194TC) |

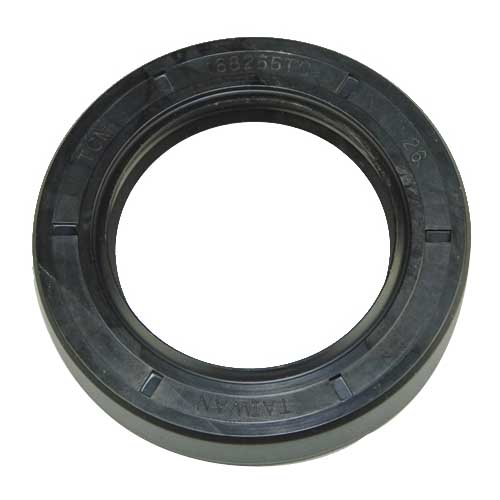

SEAL (#168255TC)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-031468 | Seal (#168255TC) |

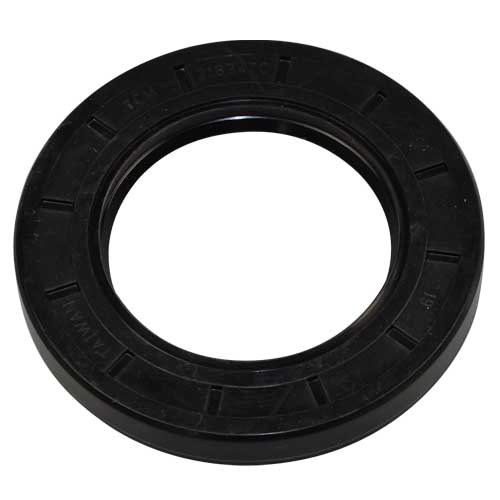

SEAL (#21334TC) 6H & 8H
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-020844 | Seal (#21334TC) 6H & 8H |

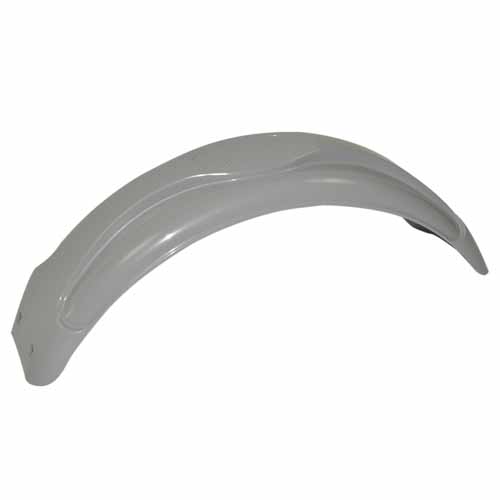

EZ LOADER FENDER FOR 12" TIRES
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-023692-10 | Fender (S) Fits 12″ Tires, Grey |
| 250-023692-12 | Fender (S) Fits 12″ Tires, Black |

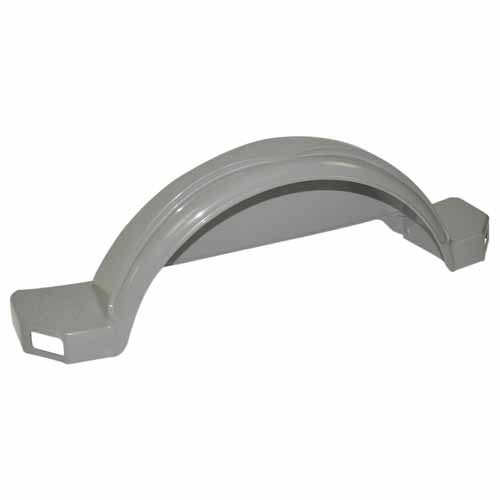

EZ LOADER FENDER FOR 13" TIRES
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-023725-10 | Fender (M) Fits 13″ Tires c/w Light Holes, Grey |
| 250-023725-12 | Fender (M) Fits 13″ Tires c/w Light Holes, Black |

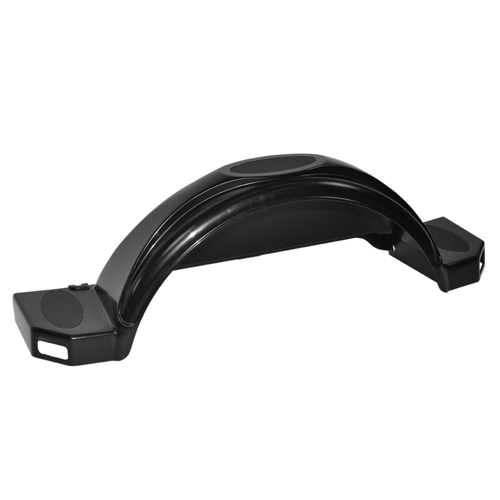

EZ LOADER FENDER FOR 14" & 15" TIRES
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-023712-10 | Fender (L) Fits 14″ & 15″ Tires c/w Light Holes, Grey |
| 250-023712-12 | Fender (L) Fits 14″ & 15″ Tires c/w Light Holes, Black |

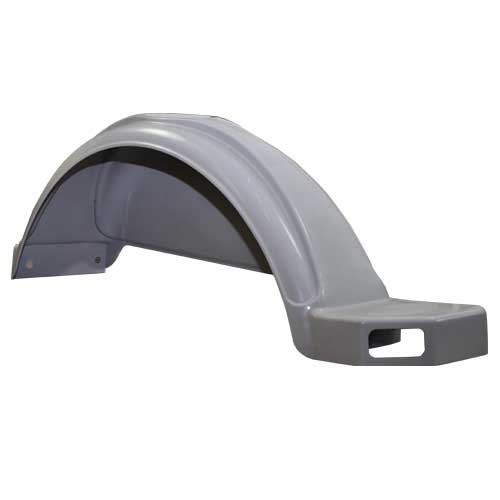

EZ LOADER FENDER, 1 STEP TRIMMED (M)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-023729-10 | Fender (M) 1 Step Trimmed RF/LR, Grey |
| 250-023729-12 | Fender (M) 1 Step Trimmed RF/LR, Black |

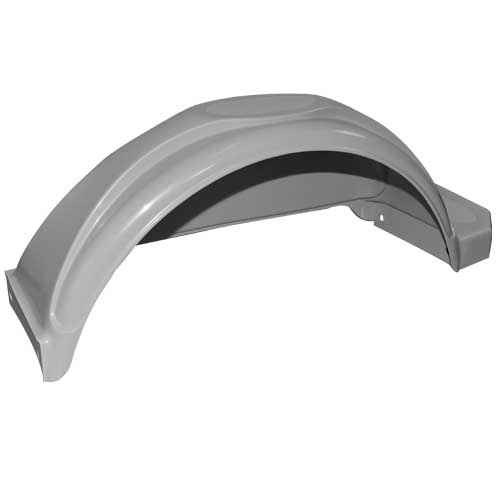

EZ LOADER FENDER, 1 STEP TRIMMED
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-023715-10 | Fender (L) 1 Step Trimmed RF/LR, Grey |
| 250-023715-12 | Fender (L) 1 Step Trimmed RF/LR, Black |
Right Front / Left Rear Fender

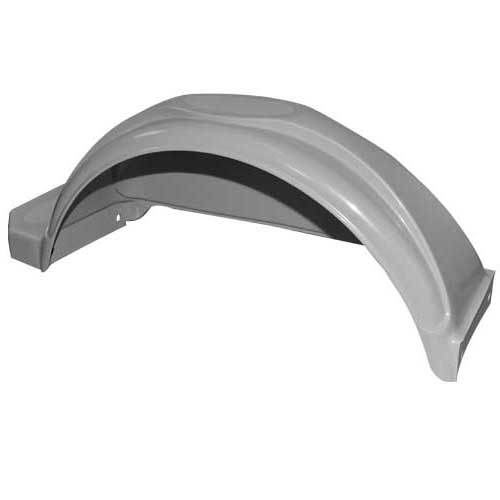

EZ LOADER FENDER, 1 STEP TRIMMED
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-023716-10 | Fender (L) 1 Step Trimmed LF/RR, Grey |
| 250-023716-12 | Fender (L) 1 Step Trimmed LF/RR, Black |
Left Front / Right Rear Fender
TAIL LIGHT COVER (GRAY)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-025170-10 | Cover Tail Light (Gray) Right Hand |
| 250-025171-10 | Cover Tail Light (Gray) Left Hand |
TAIL LIGHT COVER (BLACK)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-025170-12 | Cover Tail Light (Black) Right Hand |
| 250-025171-12 | Cover Tail Light (Black) Left Hand |

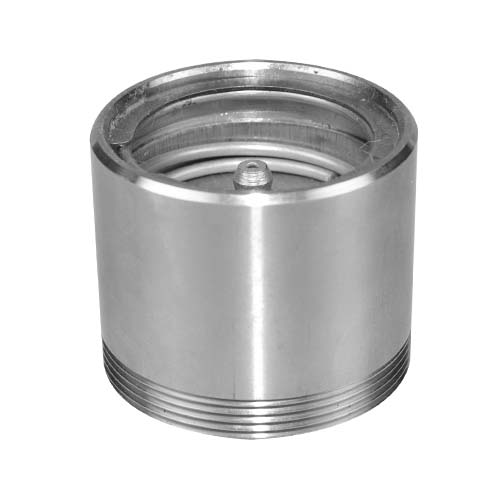

EZ LOADER CAP BEARING PROTECTOR
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-034412 | Cap Bearing Protector, 2 ⅛” Replaces Threaded Oil Cap |

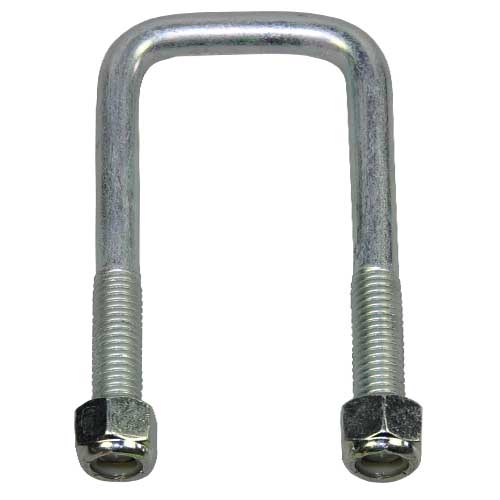

U-BOLT 1/2-13 x 2 x 4 1/2"
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-002540 | U-Bolt 1/2-13 x 2 x 4 1/2″ |

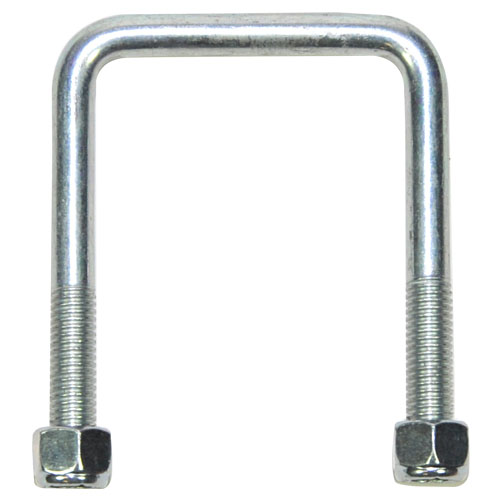

U-BOLT 4 ½” X 3” X ½”
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-002485 | Square U-Bolt, 4 ½” X 3” X ½” Diameter |

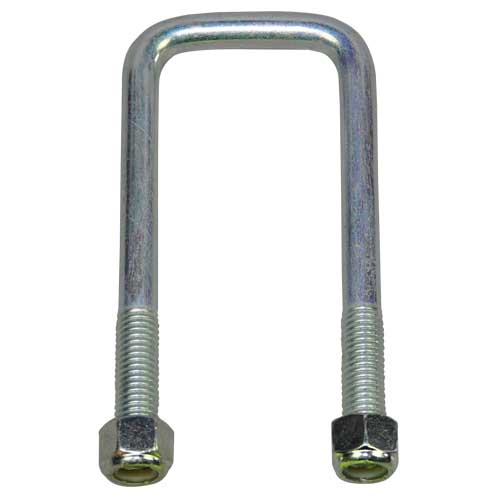

U-BOLT 1/2-13 x 2 x 5 1/2"
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-021380 | U-Bolt 1/2-13 x 2 x 5 1/2″ |
U-BOLT 3/8-16x2 1/16x4"
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-011676 | U-Bolt 3/8-16×2 1/16×4″ |
U-BOLT 1/2-13 x 3 x 5 1/4"
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-015566 | U-Bolt 1/2-13x3x5 1/4″ |
U-BOLT 3/8-16 x 1 1/2 x 3 3/8"
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-015796 | U-Bolt 3/8-16×1 1/2×3 3/8″ |

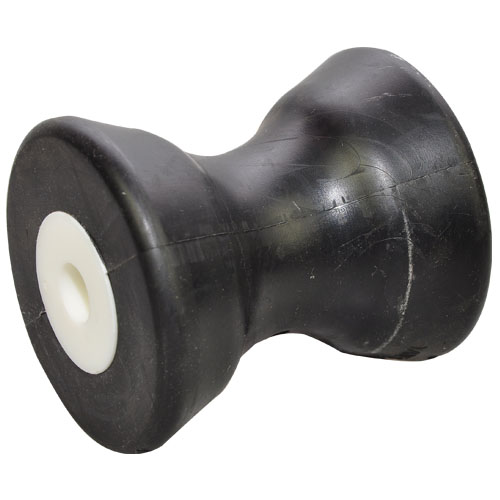

ROLL "V" BOW STOP
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-071402 | Roll “V” Bow Stop, 4″ |

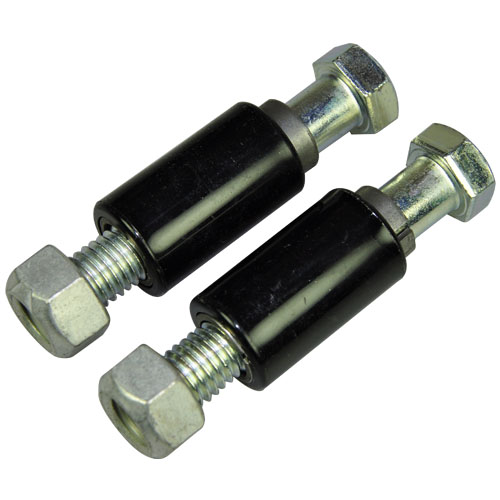

EZ LOADER SPRING BUSHING KIT
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-015973 | EZ Loader Spring Bushing Kit |
Includes: Steel Bushings (2) Nylon Bushings (2), Shackle Bolts (2) & Nuts (2)

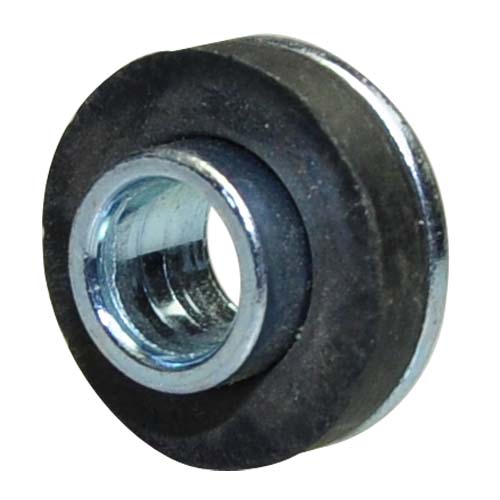

EZ LOADER FENDER WASHER SPACER
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-023740 | Fender Washer Spacer |

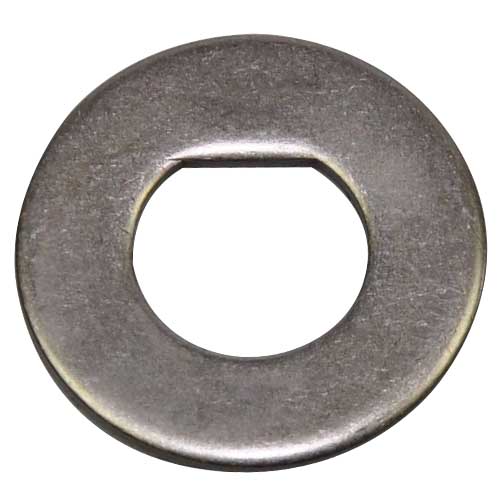

D WASHER
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-023390 | D Washer |

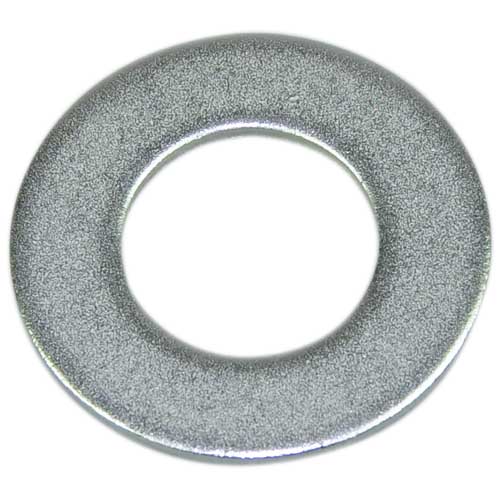

EZ LOADER WASHER 1"
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-013491 | Washer 1″ |

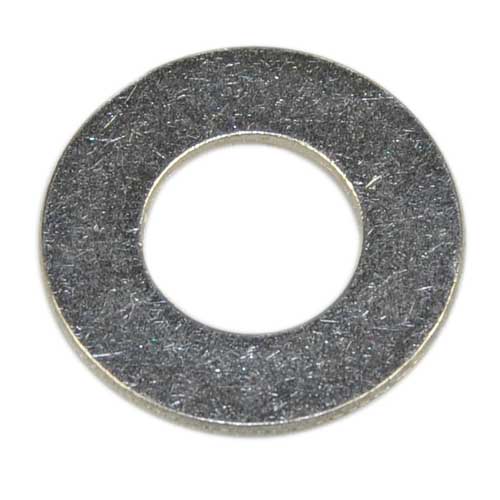

EZ LOADER WASHER 1/2"
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-015328 | Washer 1/2″ |

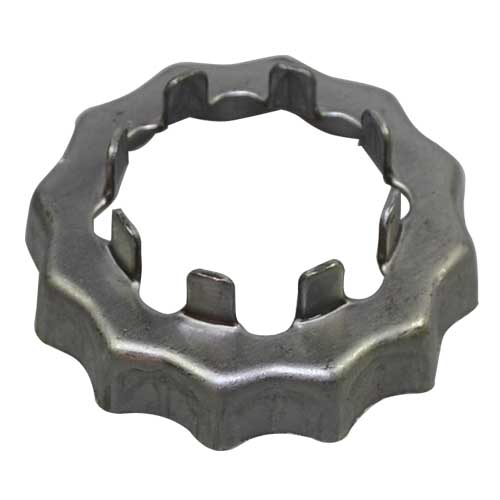

SPINDLE NUT RETAINER WASHER
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-001405 | Spindle Nut Retainer Washer, Cookie Cutter |
NUT HUB 13/16" ID
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-010452 | Nut Hub 13/16″ ID Fine Thread |

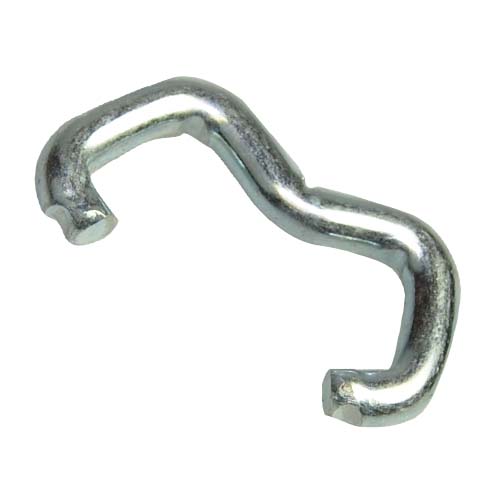

EZ LOADER HOGRING
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-002650-02 | Hogring |

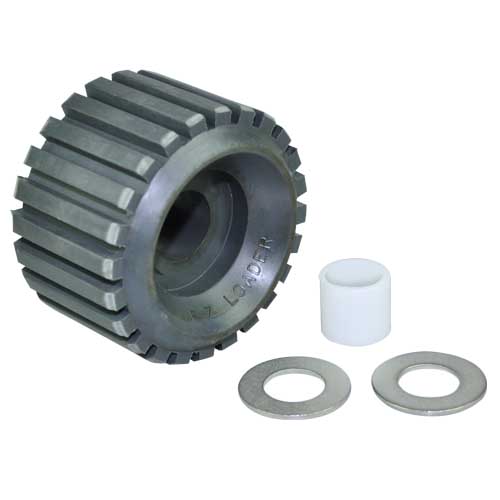

EZ LOADER ROLL w/ WASHER 4 7/8"
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-071417 | Roll w/ Washer 4 7/8″ |
Comes with: Roller (1), Nylon Bushing (1) & Outer Washer (2)
EZ LOADER BUSHING SPRING (NYLON)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-031426 | Bushing Spring (Nylon) |

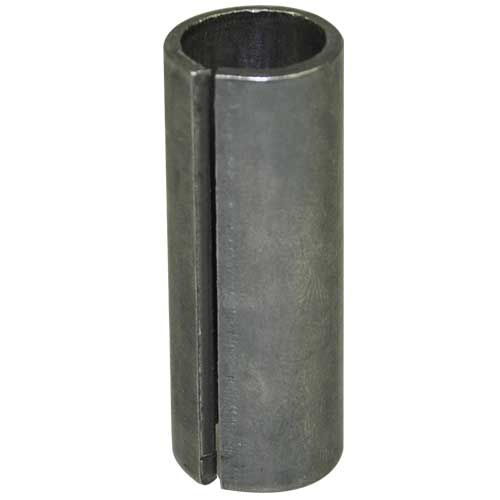

EZ LOADER BUSHING SPRING (STEEL)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-031423 | Bushing Spring (Steel) |

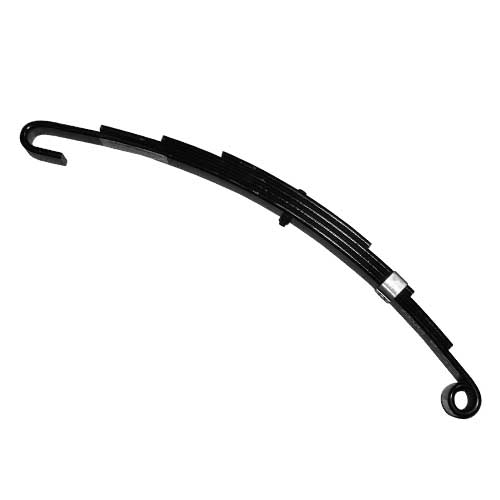

EZ LOADER SPRINGS
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-031402 | C1 Spring 2LF 1.75 x .323 |
| 250-031405 | C2 Spring 3LF 1 ¾ x .323 |
| 250-031408 | C3 Spring 3LF 1 ¾ x .360 |
| 250-031411 | C4 Spring 4LF 1 ¾ x .360 |
| 250-031414 | C5 Spring 5LF 1 ¾ x .360 |
| C-6 | C6 Spring 6LF 1 ¾ x .360 |

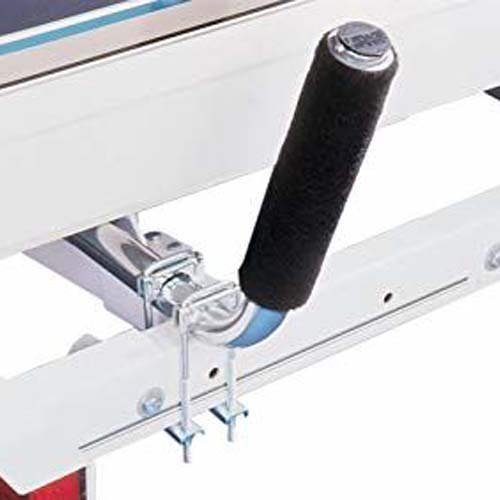

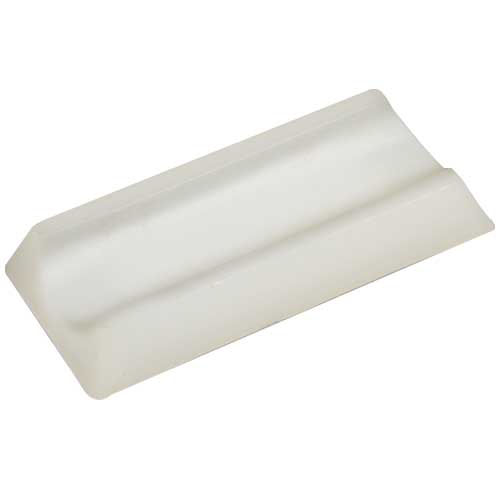

EZ LOADER GLIDE ROLL ARM POLY
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-021769 | Glide Roll Arm Poly (.44 rad) |

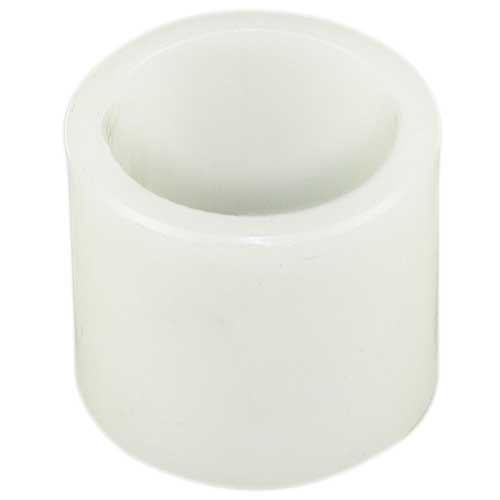

EZ LOADER BUSHING ROLL INSERT
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-013492 | Bushing Roll Insert 1.025″ Inner Dia. |

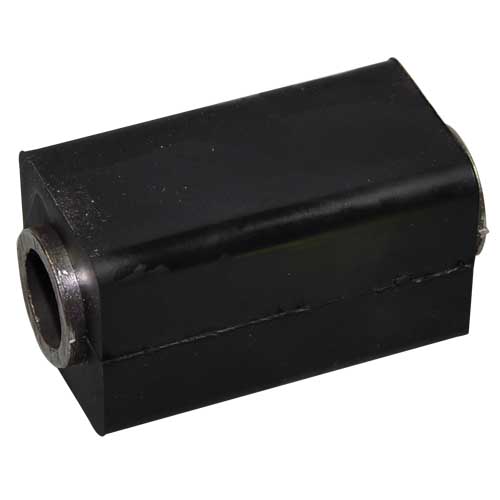

BUSHING EQUALIZER TANDEM/TRIPLE
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-031580 | Bushing Equalizer- Tandem/Triple |

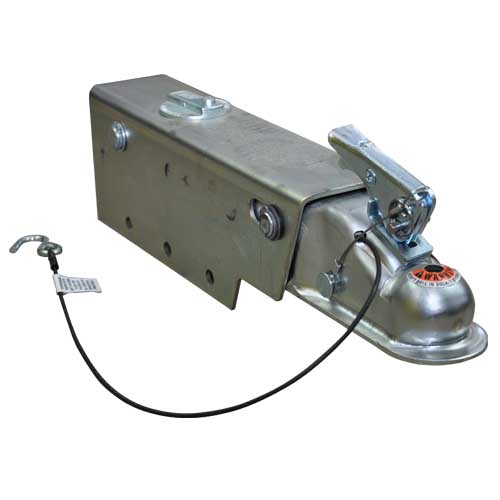

ACTUATOR HYDRAULIC DRUM 7500#
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-031631 | Actuator Hydraulic Drum 7500# |

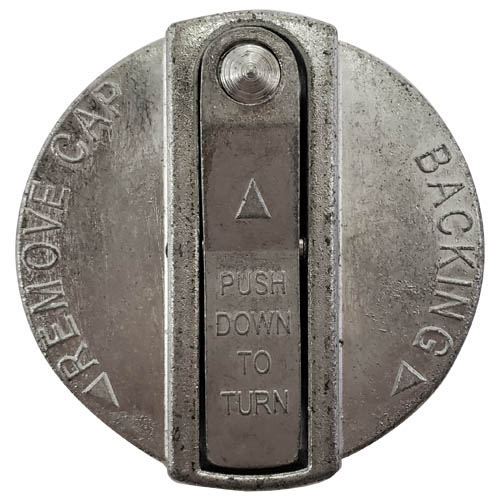

CAP LOCKOUT UPGRADE UFP
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-031973 | Cap Lockout Upgrade UFP |

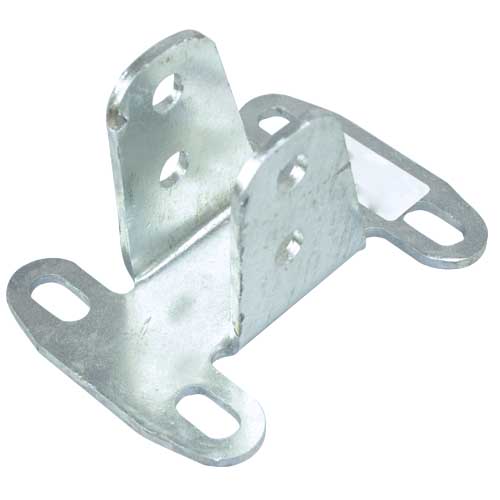

HANGER SPRING LIGHT (3/16")
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-015522-10 | Hanger Spring Light (3/16″) Galvanized |

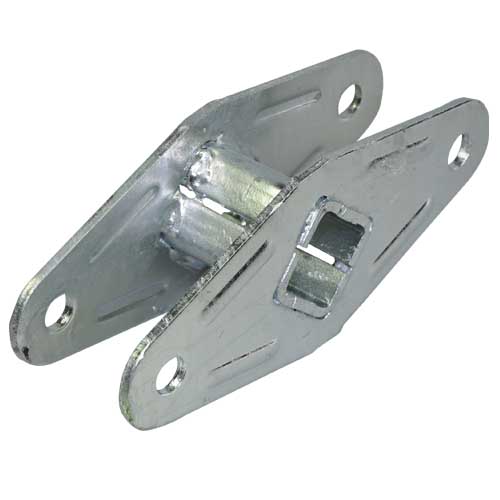

EQUALIZER SHACKLE LEAF SPRING
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-031579-10 | Equalizer Shackle Leaf Spring, Gal |
STRAP BENT BUNK/ROLL CHANNEL UPRIGHT
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-021786-10 | Strap Bent Bnk/Roll Chnl Upright |
Short , Galvanized
ROLL ARM CASTING 18" RF/LR
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-015748 | Roll Arm Casting 18″ RF/LR |
WASHER DELRIN
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-017329 | Washer Delrin |
CROSSMEMBER WLD'D ROLL 2x4" (70.72)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-019151-10 | Crossmember Wld’d Roll 2×4 BM 70.72, Galvanized |

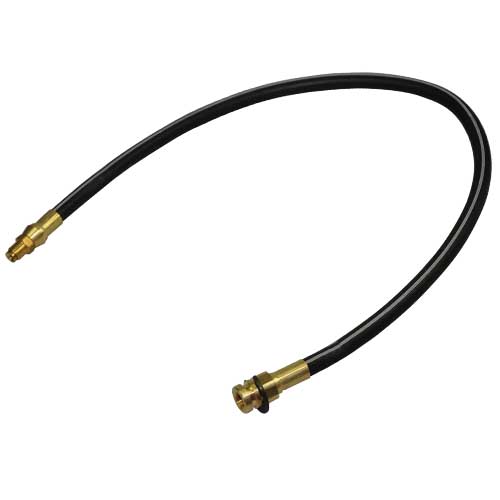

HYDRAULIC BRAKE HOSE 24"
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-010140 | Hydraulic Brake Hose 24″ w/ M/F End Fittings |
HYDRAULIC HOSE 24" (M-M)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-041438 | Hydraulic Hose 24″ (M-M) |

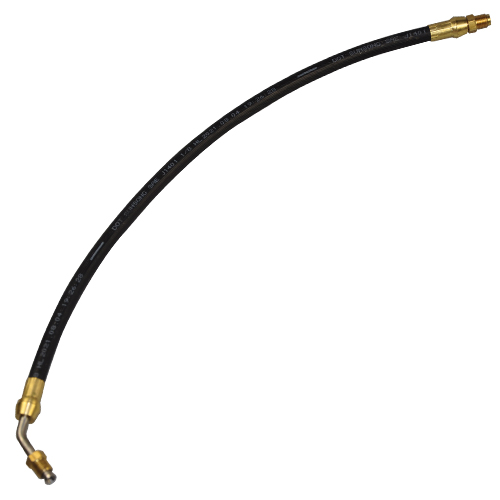

HYDRAULIC HOSE TRSN 16" (M-M)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-022660 | Hydraulic Hose Trsn 16″ (M-M) |

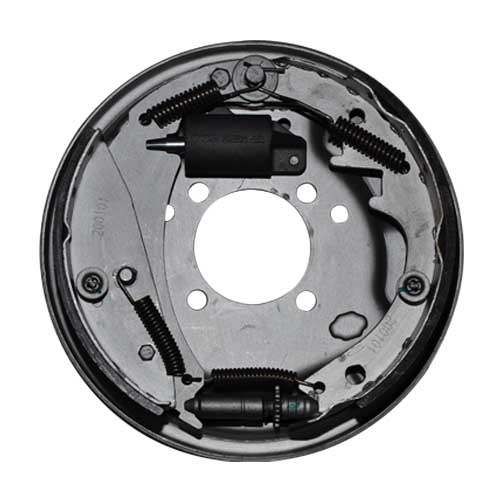

BACKING PLATE 10" HYDRAULIC (LEFT)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-015781 | Backing Plate 10″ Hydraulic, Left (Non-Curb) Side |

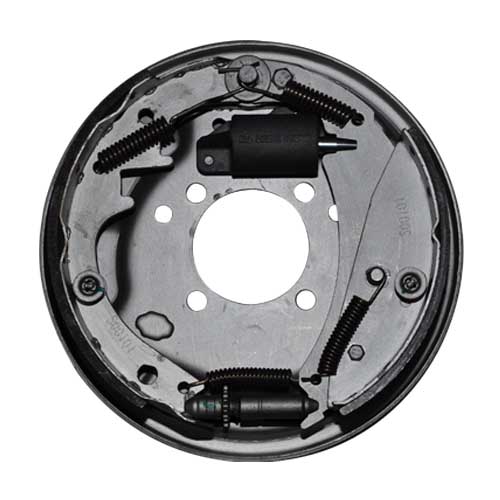

BACKING PLATE 10" HYDRAULIC (RIGHT)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-015782 | Backing Plate 10″ Hydraulic, Right (Curb) Side |

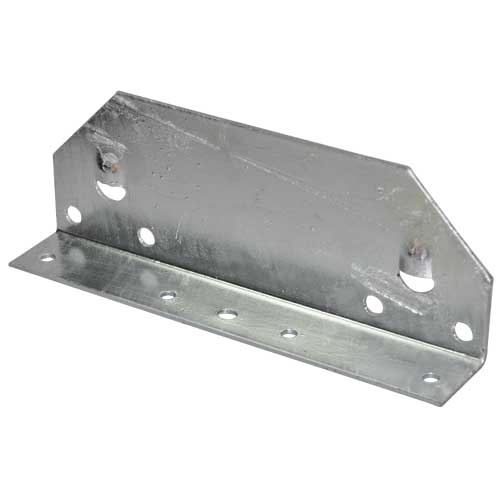

STEP LARGE 2" FRAME (COMPOSITE)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-023722-10 | Step Large 2″ Frame Comp Galvanized |
ROLLER QUAD / MULT MOUNTING STRAP KIT
| PART NUMBER | DESCRIPTION |
|---|---|
| 300-015980 | Roller Quad, Mult Mounting Strap Kit |

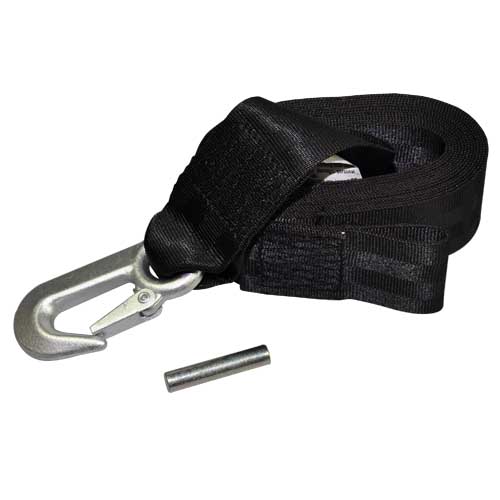

WINCH STRAP 2" x 14ft
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-023615 | Winch Strap w/ Large Hook & Loop – 2″x14ft |

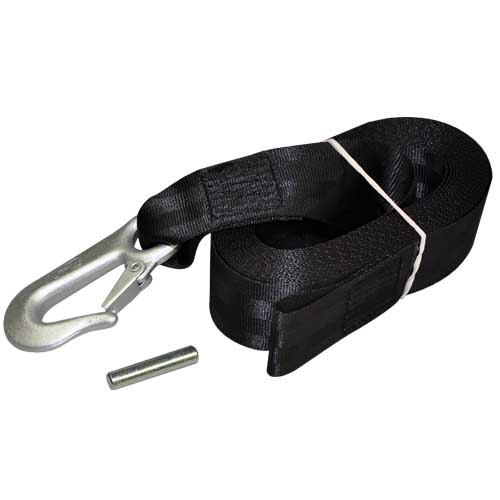

WINCH STRAP 2" x 20ft
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-021332 | Winch Strap w/ Large Hook & Loop – 2″x20ft |

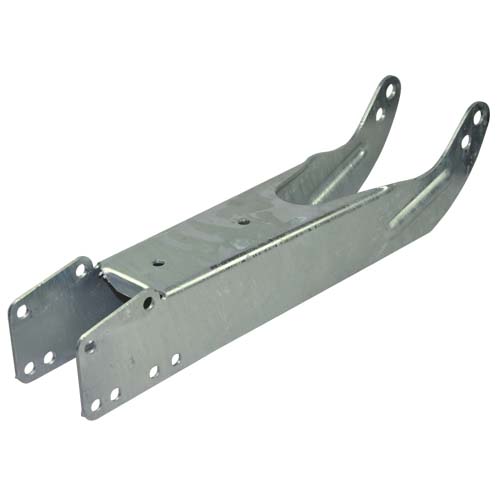

WINCH HEAD FORMED (CS XX-2)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-021785-10 | Winch Head Formed Galvanized |
STRAP BUNK MTG (3/8 x 2 x 22")
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-016282-10 | Strap Bunk Mtg (3/8x2x22″) |
PLATE BENT BUNK MTG 3/16 x 3 x 3
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-015202 | Plate Bent Bunk MTG (3/16x3x3) |

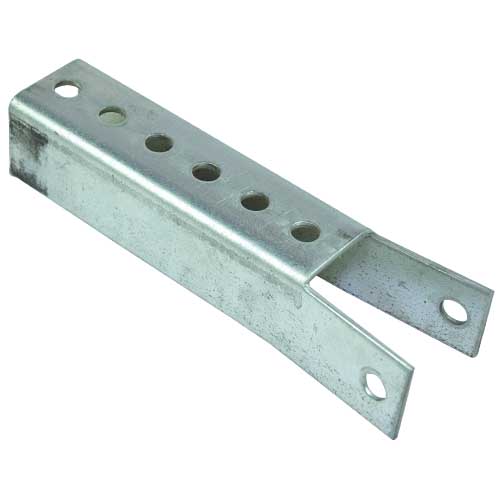

BUNK CHANNEL MOUNTING 8" (6 HOLE)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-021732-10 | Bunk Channel Mounting 8″ (6 Hole) |
BUNK MOUNTING BRACKET
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-022387-10 | Bunk Mounting Bracket Galvanized |

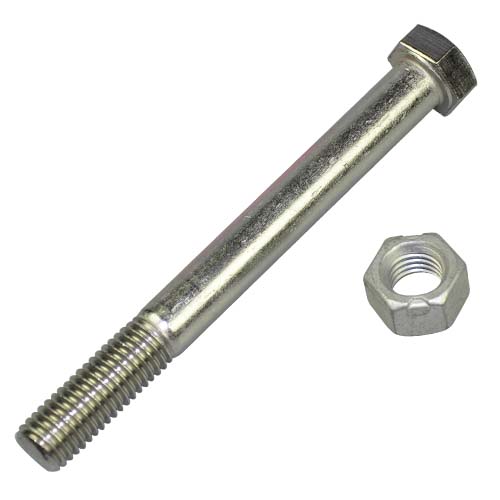

BOLT 5/8 11x6" HH G5 SS
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-021075-S | Bolt 5/8 11×6″ HH G5 SS |

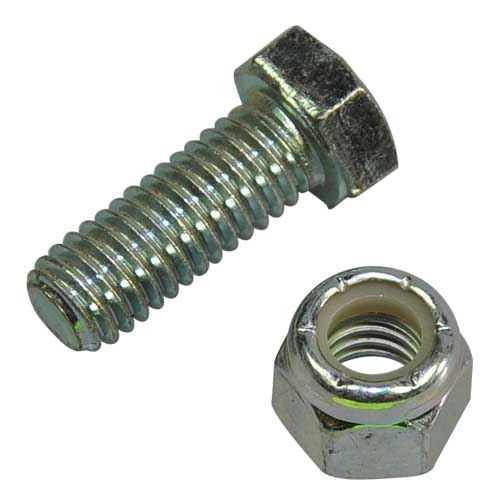

BOLT 3/8-16 x 1" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-001423 | Bolt 3/8-16×1″ HH G5 |

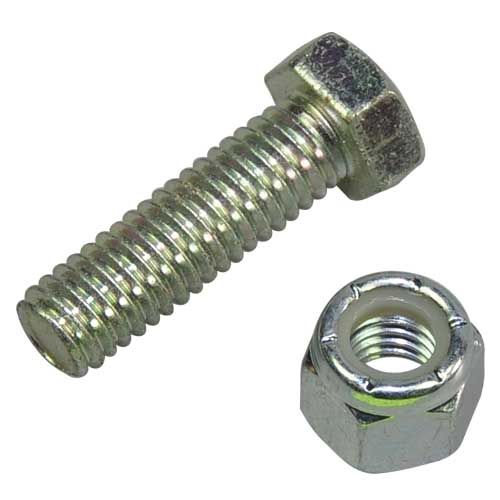

BOLT 3/8-16 x 1 1/4" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-011847 | Bolt 3/8-16×1 1/4″ HH G5 |
BOLT 3/8-16 x 1 1/2" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-001429 | Bolt 3/8-16×1 1/2″ HH G5 |

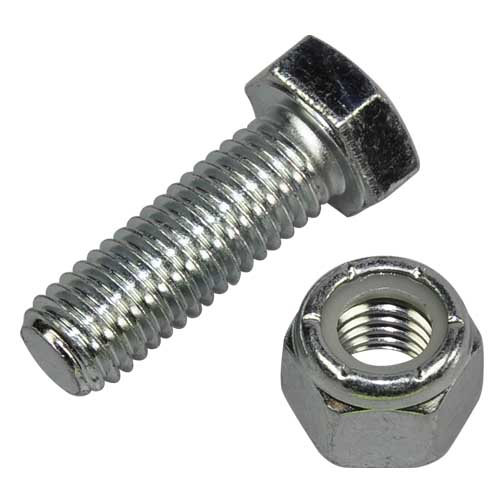

BOLT 1/2-13 x 1 1/2" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-001522 | Bolt 1/2-13 x 1 1/2″ HH G5 |

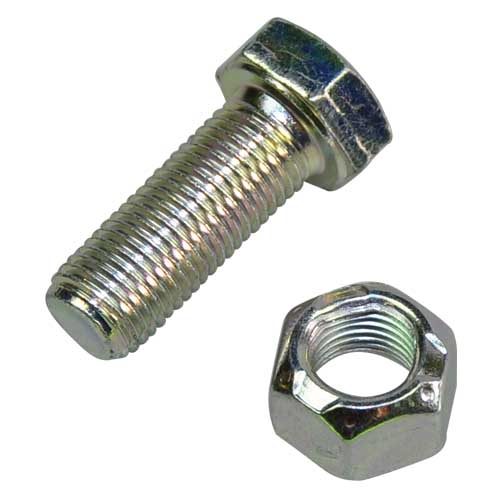

BOLT 7/16-20 x 1" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-033789 | Bolt 7/16-20×1″ HH G5 |

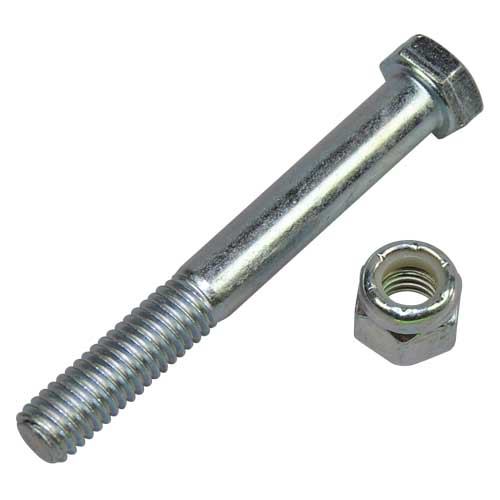

BOLT 3/8-16 x 3" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-001435 | Bolt 3/8-16 x 3″ HH G5 |

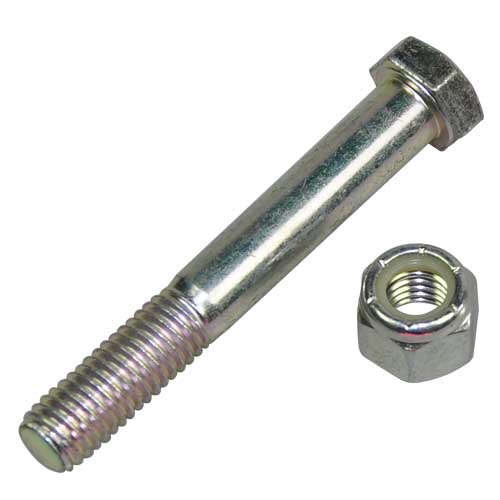

BOLT 1/2-13 x 3 1/2" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-001543 | Bolt 1/2-13 x 3 1/2″ HH G5 |

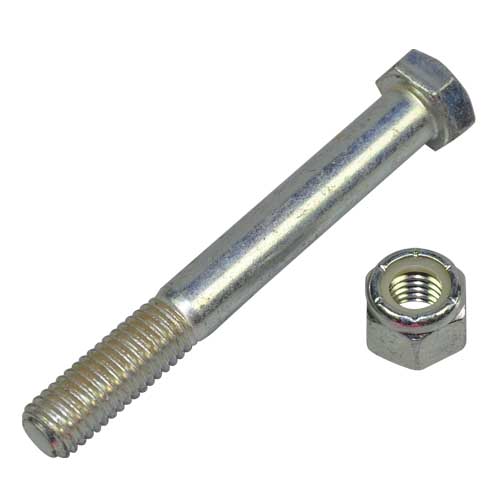

BOLT 1/2-13 x 4" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-001549 | Bolt 1/2-13×4″ HH G5 |

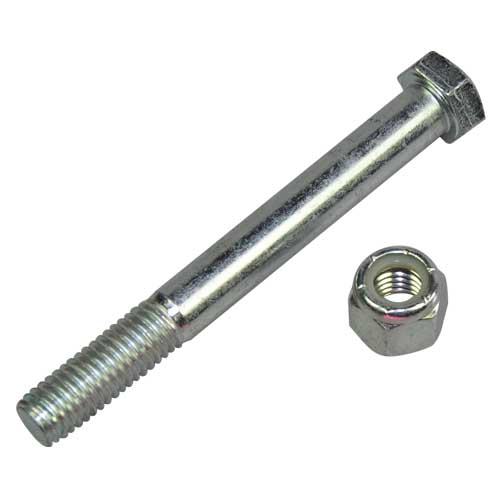

BOLT 1/2-13 x 4 1/2" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-001555 | Bolt 1/2-13 x 4 1/2″ HH G5 |

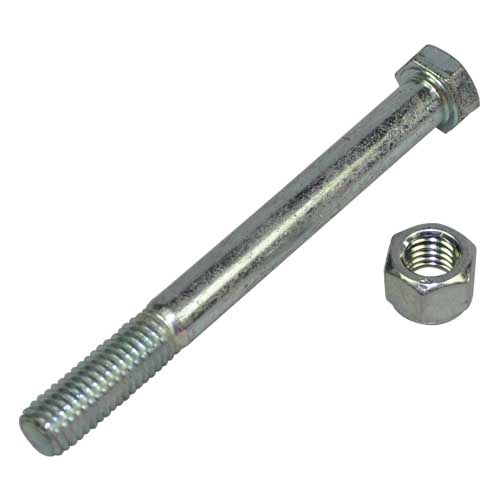

BOLT 1/2-13 x 5" HH G5 (ZINC PLATED)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-001564 | Bolt 1/2-13 x 5″ HH G5 |

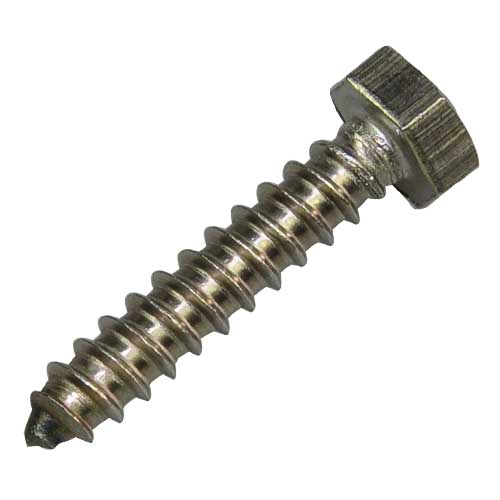

BUNK SCREW LAG 5/16x1 1/2" SS
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-035256-S | Bunk Screw Lag 5/16×1 1/2″ SS |

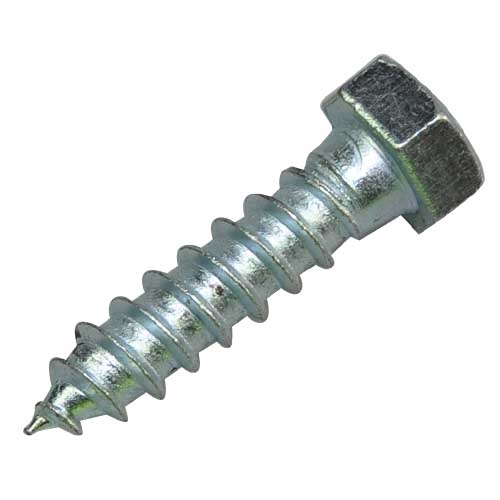

BUNK SCREW 5/16 x 1 1/4 (ZP)
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-021196 | Bunk Screw 5/16×1 1/4 ZP |
STUD LUG 1/2 20 x 2"
| PART NUMBER | DESCRIPTION |
|---|---|
| 290-034169 | Stud Lug 1/2-20 x 2″ (UFP) |
HANGER SPG CMPT (ONE PIECE)
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-024125-10 | Hanger SPG CMPT |

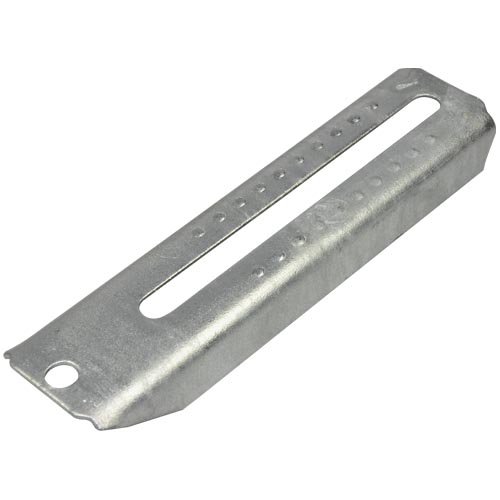

BRACKET SPRINT BUNK MOUNTING 9"
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-014876-10 | Bracket Sprint Bunk MTG 9″ |

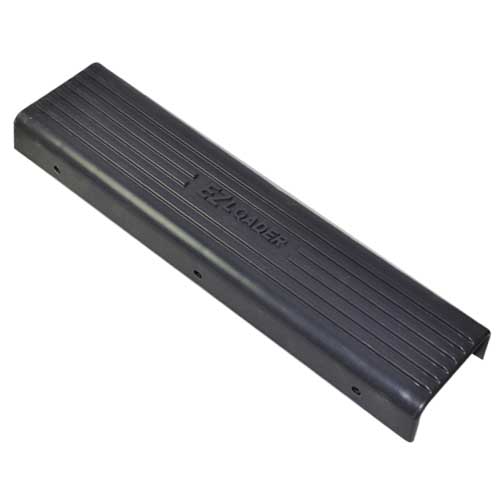

CHANNEL GLIDE BUNK COVER 4"x18"
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-025648 | Channel Glide Bunk Cover, Plastic |
Dimensions: 4″ W x 18″ L
CHANNEL GLIDE BUNK COVER 6"x18"
| PART NUMBER | DESCRIPTION |
|---|---|
| 250-025649 | Channel Glide Bunk Cover, Plastic |
Dimensions: 6″ W x 18″ L
FULTON BUNK CARPETING 8" WIDE
| PART NUMBER | DESCRIPTION |
|---|---|
| CECR8008 | Fulton Bunk Carpeting 8″ x 12ft |

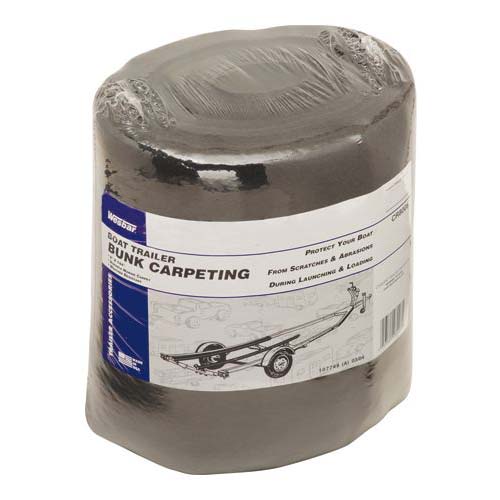

FULTON BUNK CARPETING 12" WIDE
| PART NUMBER | DESCRIPTION |
|---|---|
| CECR8012 | Fulton Bunk Carpeting 12″ x 12ft |
SEASENSE BUNK CARPETING 8" WIDE
| PART NUMBER | DESCRIPTION |
|---|---|
| 50073871 | SeaSense Bunk Carpeting 8″ x 12ft |
SEASENSE BUNK CARPETING 12" WIDE
| PART NUMBER | DESCRIPTION |
|---|---|
| 50073872 | SeaSense Bunk Carpeting 12″ x 12ft |
FULTON BOAT GUIDE 20"
| PART NUMBER | DESCRIPTION |
|---|---|
| DBGR200101 | Fulton Boat Guide 20″ (Pair) |

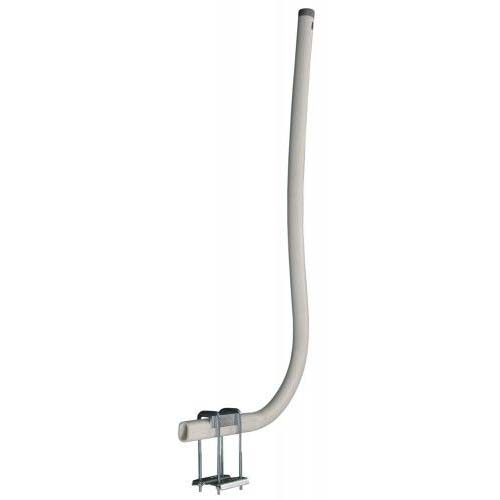

FULTON BOAT GUIDE 50"
| PART NUMBER | DESCRIPTION |
|---|---|
| GB1500100 | Fulton Boat Guide 50″ (Pair) |
EZ Loader Boat Trailer Serial Number
If your serial number begins with “1L8” instead of “1ZE“, the trailer was built by the EZ Loader’s Custom Division.
Please call 1-800-553-7855 for assistance as we do not have access to the custom division parts.
EZ-LOADER INQUIRY FORM
For parts not listed above, fill up this form and we’ll get back to you with more information ASAP.
