BALL MOUNTS
Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.
Disclaimer: Images may not always be accurate to the part #
If you do not find what you are looking for, contact us.
![Trailer Ball Mounts ball mounts](https://trailercanada.com/wp-content/uploads/2022/12/Trailer-Ball-Mounts.jpg)

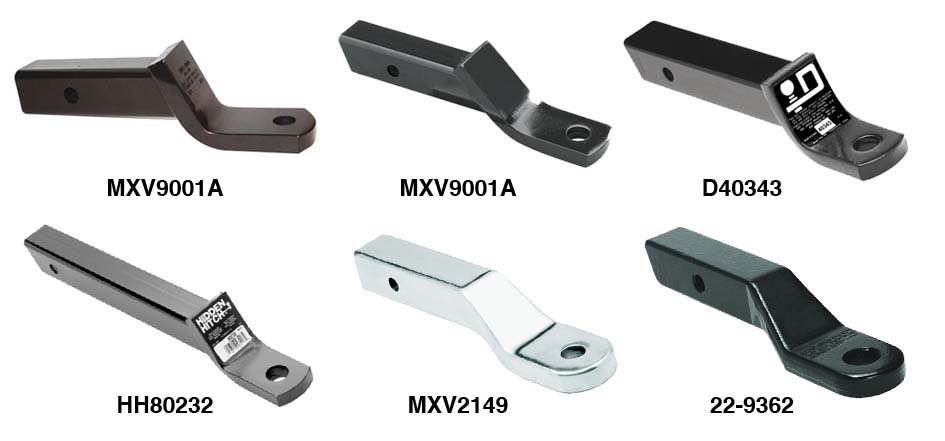

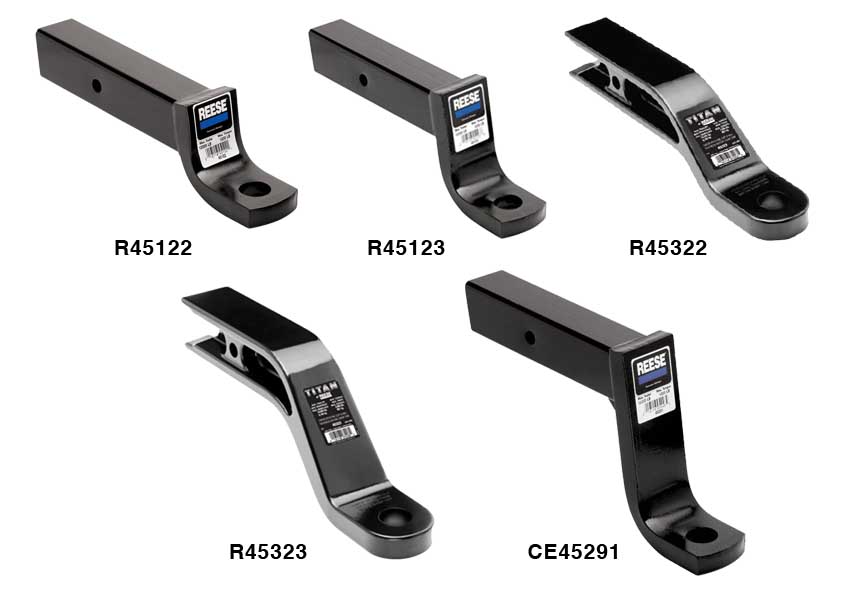

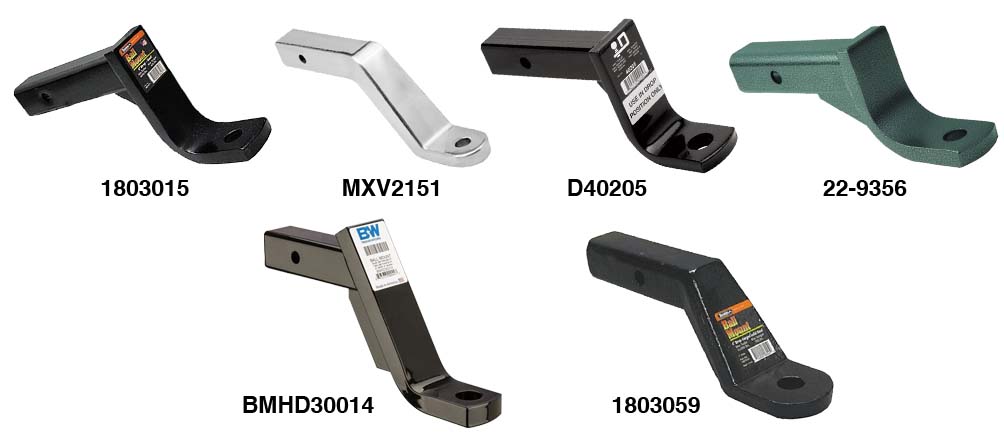

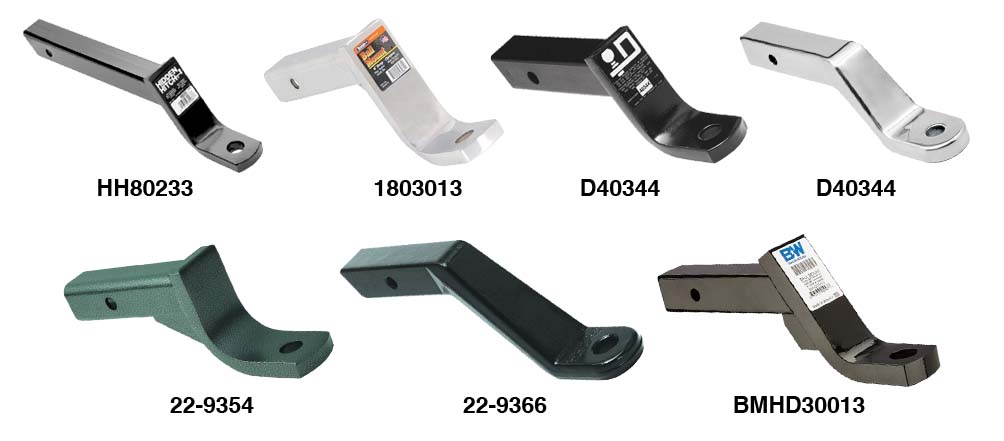

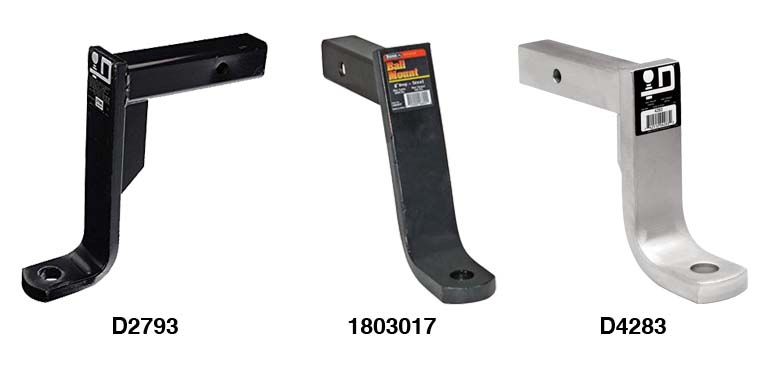

Trailer Ball Mounts
3″ “Length” in following table refers to center of shank hole to center of ball hole.
PART NUMBER | DESCRIPTION | LENGTH | DROP | RISE | CAP. (LBS) | SHANK HOLE DIA |
---|---|---|---|---|---|---|
MXV9001A | Trailer Ball Mount, 2” X 2”, Black | 7 3/8″ | 2″ | ¾” | 3,500 | ¾” |
MXV80221 | Trailer Ball Mount, 2” X 2”, Black | 8 ½” | 2″ | ¾” | 6,000 | 1″ |
D40342 | Trailer Ball Mount, 2” X 2”, Black | 8 ½” | 2″ | ¾” | 7,500 | 1″ |
D4280 | Solid Shank Trailer Ball Mount, 2” X 2”, Black | 8 ½” | 2″ | 1″ | 12,000 | 1 ¼” |
D40330 | Trailer Ball Mount, 2” X 2”, Black | 8 ½” | 2″ | 1″ | 16,000 | 1 ¼” |
R45322 | Trailer Ball Mount, 2 ½” X 2 ½”, Black | 10″ | 3″ | 1 ½” | 18,000 | 1 ¼” |
MXV80220 | Trailer Ball Mount, 2” X 2”, Black | 8″ | 4″ | 2 ¾” | 5,000 | 1″ |
D40344 | Trailer Ball Mount, 2” X 2”, Black | 9″ | 4″ | 2 ¾” | 7,500 | 1″ |
D4281 | Trailer Ball Mount, 2” X 2”, Black | 8 ½” | 4″ | 3″ | 12,000 | 1 ¼” |
D40331 | Solid Forged Trailer Ball Mount, 2” X 2”, Black | 9 ¼” | 4″ | 3″ | 16,000 | 1 ¼” |
D40700 | HD Trailer Ball Mount, 3” X 3”, Black | — | 4″ | — | 21,000 | 1 ¼” |
R45323 | Trailer Ball Mount, 2 ½” X 2 ½”, Black | 10″ | 5″ | 3 ½” | 18,000 | 1 ¼” |
D40346 | Trailer Ball Mount, 2” X 2”, Black | 9 ½” | 6″ | 4 ¾” | 6,000 | 1″ |
D4282 | Trailer Ball Mount, 2” X 2”, Black | 9 ½” | 6″ | 5″ | 12,000 | 1 ¼” |
D40701 | HD Trailer Ball Mount, 3” X 3”, Black | — | 6″ | — | 21,000 | 1 ¼” |
CE45291 | Trailer Ball Mount, 2 ½” X 2 ½”, Black | 10 ½” | 7″ | — | 13,000 | 1 ¼” |
D2793 | Trailer Ball Mount, 2” X 2”, Black | 10″ | 8″ | 6 ¾” | 5,000 | 1″ |
D4283 | Trailer Ball Mount, 2” X 2”, Zinc Finish | 9 ½” | 8″ | 7″ | 21,000 | 1 ¼” |
D2706 | Trailer Ball Mount, 2” X 2”, Black | 9″ | 11″ | 9 ¾” | 3,500 | 1″ |
22-9319 | Clevis-Style Trailer Ball Mount, 2” X 2”, Black | 9″ | — | — | 6,000 | 1″ |
![Adjustable Ball Mounts 2022 ball mounts](https://trailercanada.com/wp-content/uploads/2022/12/Adjustable-Ball-Mounts-2022.jpg)

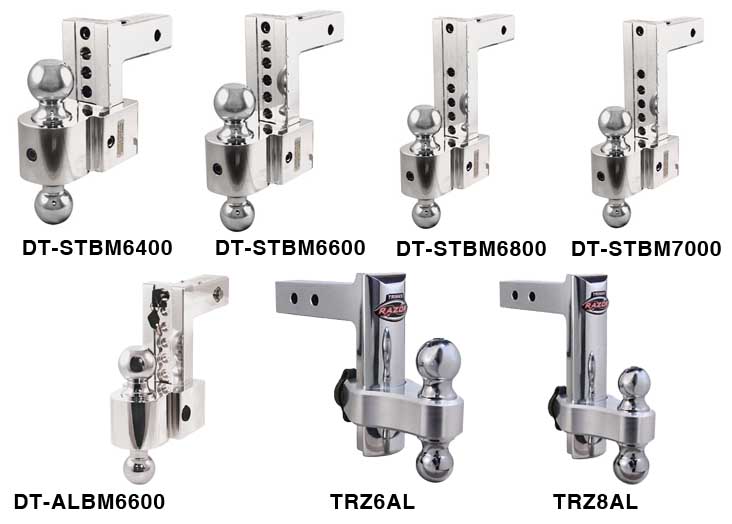

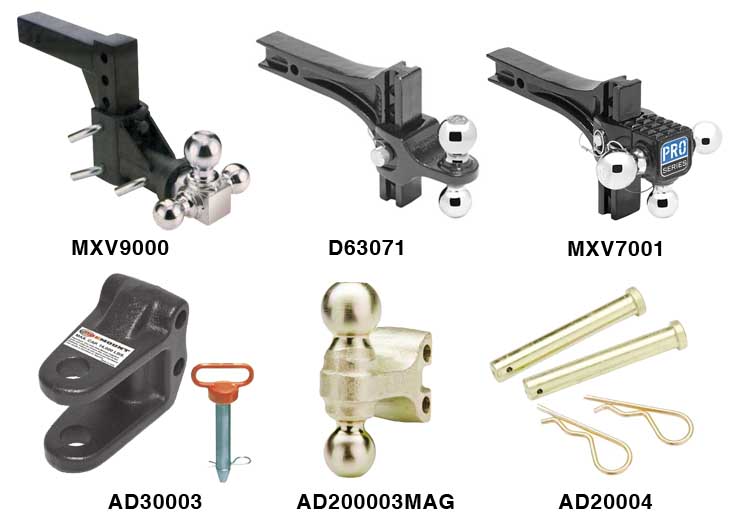

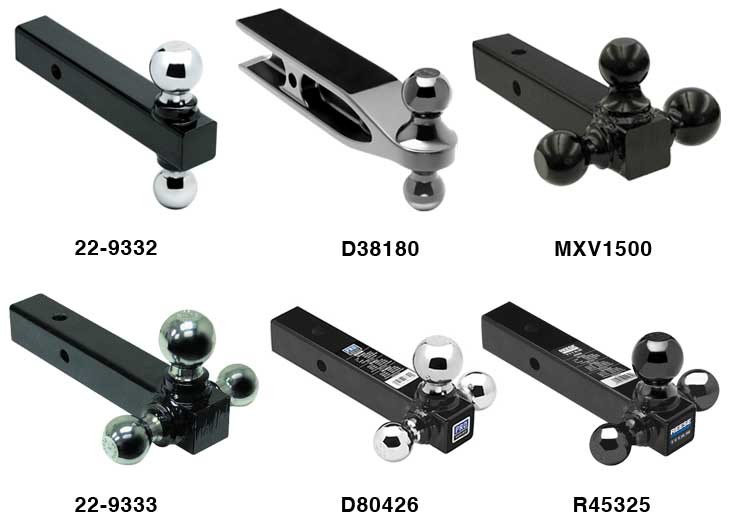

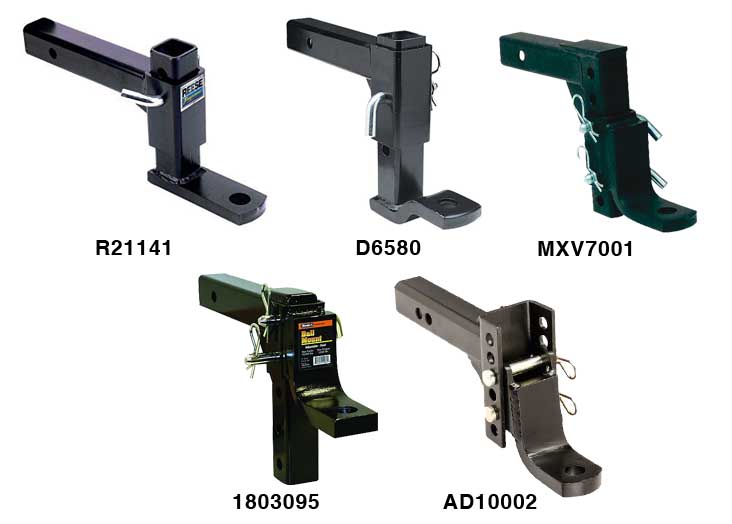

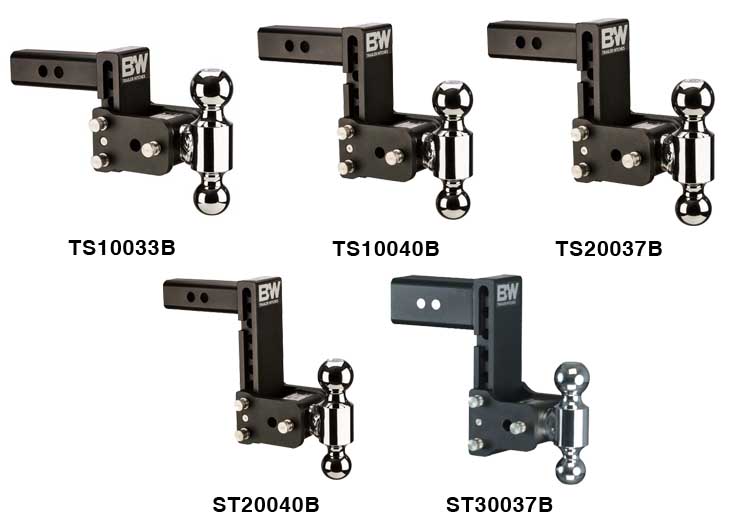

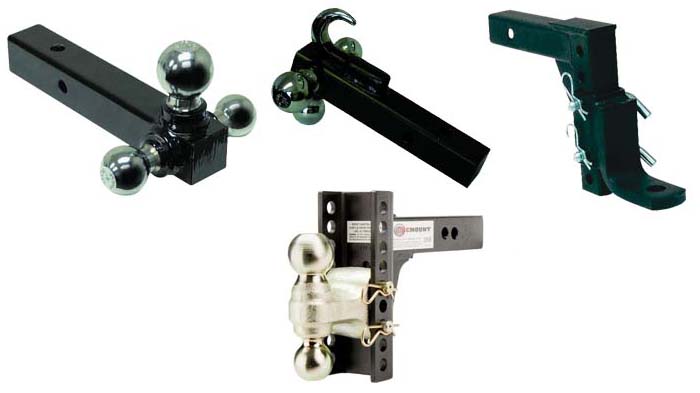

Adjustable Ball Mounts
“Length” in following table refers to center of shank hole to center of ball.
PART NUMBER | DESCRIPTION | LENGTH | BALL SIZES | CAP. (LBS) | DROP | RISE |
---|---|---|---|---|---|---|
22-9333 | Straight Triple Ball Mount, 2” X 2”, Black | 12″ | 1 7/8” 2” 2 5/16” | 2,000 6,000 10,000 | — | — |
RDBM4D | Straight Triple Ball Mount With Tow Hook, 2” X 2”, Black | 12” | 1 7/8” 2” 2 5/16” Hook | 3,500 5,000 7,500 7,500 | — | — |
MXV7001 | Adjustable Ball Mount, 2” X 2”, Black | 11 ¾” | Any Ball With 1” Shank | 6,000 | 11″ | 9 ¾” |
AD10001 | Adjustable Ball Mount, 2” X 2”, Black, C-Channel Style | — | 2” 2 5/16” | 10,000 14,000 | 6″ | 5 ¾” |
TRZ6AL | Aluminum Triple Adjustable Ball Mount, 2” X 2”, Adjusts Into Position With Internal Lock | — | 2” 2 5/16” | 10,000 | 6″ | — |
TRZ8AL | Aluminum Triple Adjustable Ball Mount, 2” X 2”, Adjusts Into Position With Internal Lock | — | 2” 2 5/16” | 10,000 | 8″ | — |
TRZ12AL | Aluminum Triple Adjustable Ball Mount, 2” X 2”, Adjusts Into Position With Internal Lock | — | 2” 2 5/16” | 10,000 | 12″ | — |
TRZ4AL-RP | Aluminum Triple Adjustable Ball Mount, 2” X 2”, Adjusts Into Position With Pin & Clip | — | 2” 2 5/16” | 10,000 | 4″ | — |
TRZ6AL-RP | Aluminum Triple Adjustable Ball Mount, 2” X 2”, Adjusts Into Position With Pin & Clip | — | 2” 2 5/16” | 10,000 | 6″ | — |
TRZ8AL-RP | Aluminum Triple Adjustable Ball Mount, 2” X 2”, Adjusts Into Position With Pin & Clip | — | 2” 2 5/16” | 10,000 | 8″ | — |
![Pintle Mounts & Accessories ball mounts](https://trailercanada.com/wp-content/uploads/2022/12/Pintle-Mounts-Accessories.jpg)

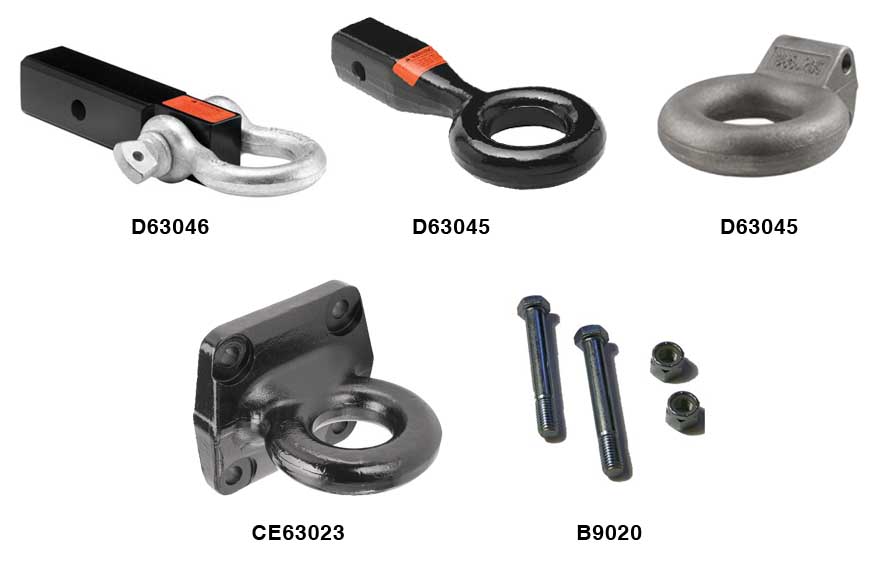

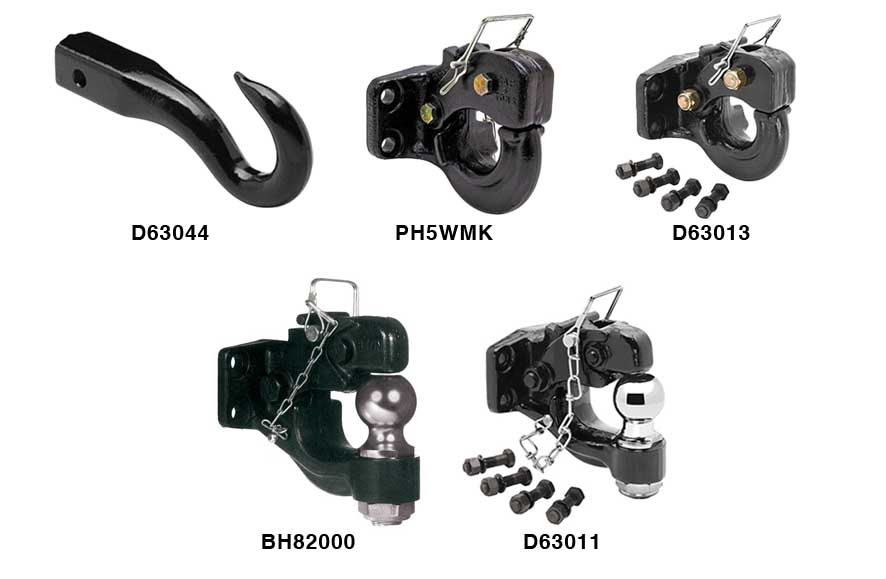

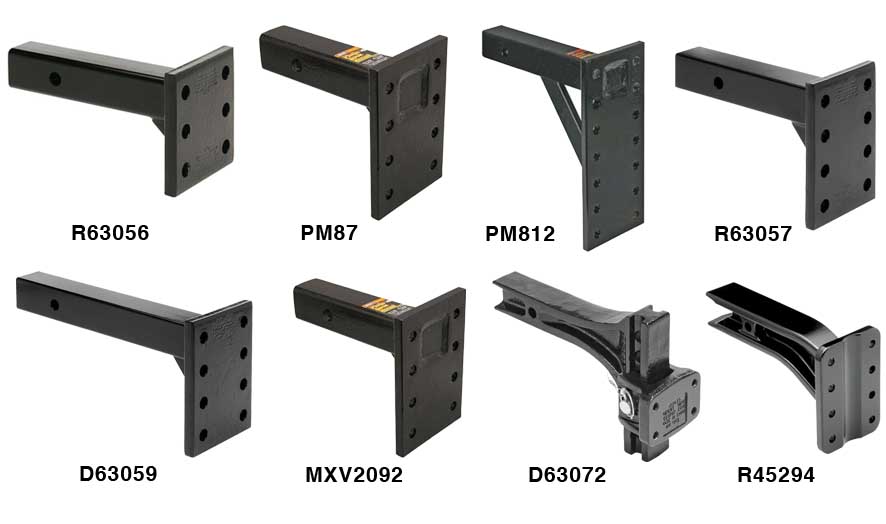

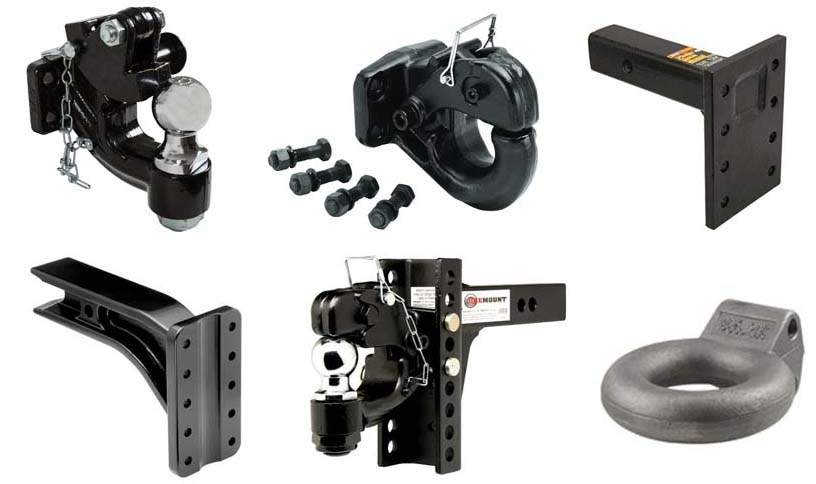

Pintle Mounts & Accessories
PART NUMBER | DESCRIPTION | CAP (LBS) |
---|---|---|
BH102516 | Bolt-On Pintle Hook With 2 5/16” Ball, Mounting Bolts Not Included | 20,000 |
22-9616 | Bolt-On Pintle Hook, Mounting Bolts Included | 60,000 |
MXV2092 | 2-Position Pintle Hook Mount, 2” X 2”, 6-Hole, Black | 12,000 |
R45156 | 2-Position Pintle Hook Mount, 2 ½” X 2 ½”, 6-Hole, Black | 12,000 |
PM105 | 3-Position Pintle Hook Mount, 2” X 2”, 8-Hole, Black | 15,000 |
R45294 | 3-Position Pintle Hook Mount, 2 ½” X 2 ½”, 8-Hole, Black | 18,000 |
CE38186 | 4-Position Pintle Hook Mount, 3” X 3”, 10-Hole, Black | 25,000 |

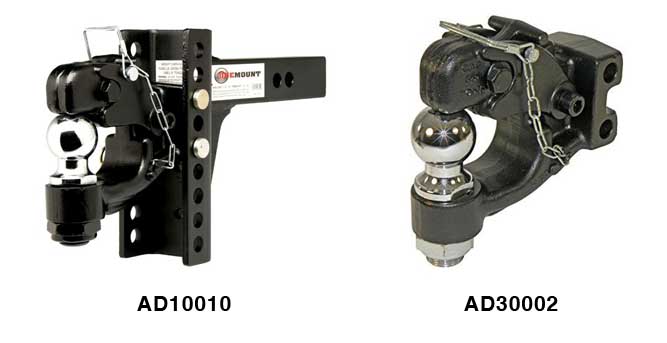

AD10015 | Adjustable Pintle System, 2” X 2”, Black, C-Channel Style, 2 5/16” Ball, 8” Drop | 13,000 |
MXV16137 | Pintle Ring For 3” C-Channel, 3” Pintle Eye Dia. | 12,000 |
![ball mounts](https://trailercanada.com/wp-content/uploads/2019/02/hitch_pins_clips.jpg)

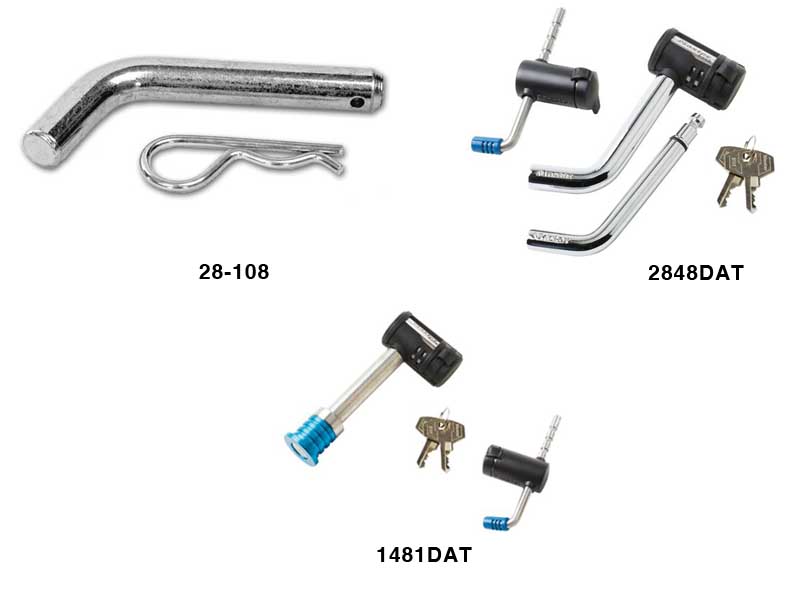

Hitch Pins & Clips
PART NUMBER | DESCRIPTION |
---|---|
28-108 | 5/8” Receiver Pin & Clip |
2848DAT | 5/8” Keyed Lockable Receiver Pin, 1 ¼” & 2” Adjustments |
1481DAT | 5/8” Keyed Lockable Receiver Pin, 9/16” & 2 ¾” Adjustments |
![ball mounts](https://trailercanada.com/wp-content/uploads/2019/02/receiver_ext_reducer_sleeves.jpg)

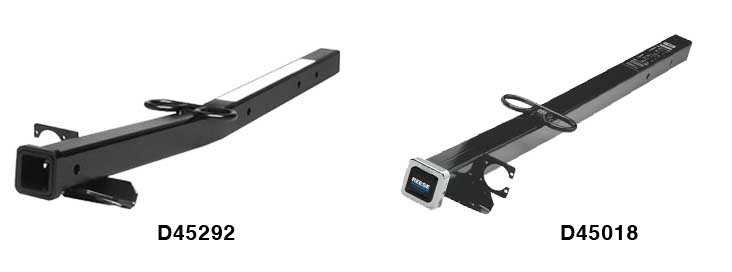

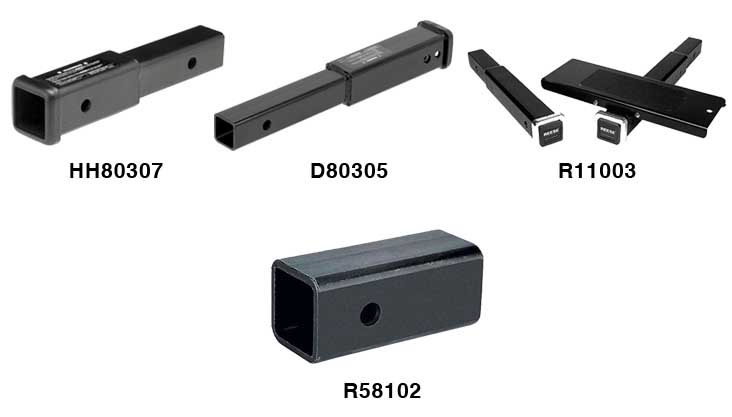

Receiver Extensions & Reducer Sleeves
PART NUMBER | DESCRIPTION | CAPACITIES | BRAND |
---|---|---|---|
HH80307 | Receiver Extension, 2” X 2”, Adds 8” To Receiver |
| Hidden Hitch |
D80305 | Receiver Extension, 2” X 2”, Adds 14” To Receiver |
| Tow Ready |
R11003 | Receiver Extension, 2” X 2”, Adds 14” To Receiver |
| Reese |
R11004 | Receiver Extension, 2” X 2”, Adds 18” To Receiver |
| Reese |
R58102 | Reducer Sleeve, Reduces 2 ½” To 2”, 5 ¾” Length | Reese | |
D58550 | Reducer Sleeve With Collar, Reduces 3” To 2” | Cequent | |
D58552 | Reducer Sleeve, Reduces 3” To 2 ½” | Cequent |
* Capacity without weight distribution hitch
** Capacity with weight distribution hitch
![ball mounts](https://trailercanada.com/wp-content/uploads/2019/02/gooseneck_kingpins.jpg)

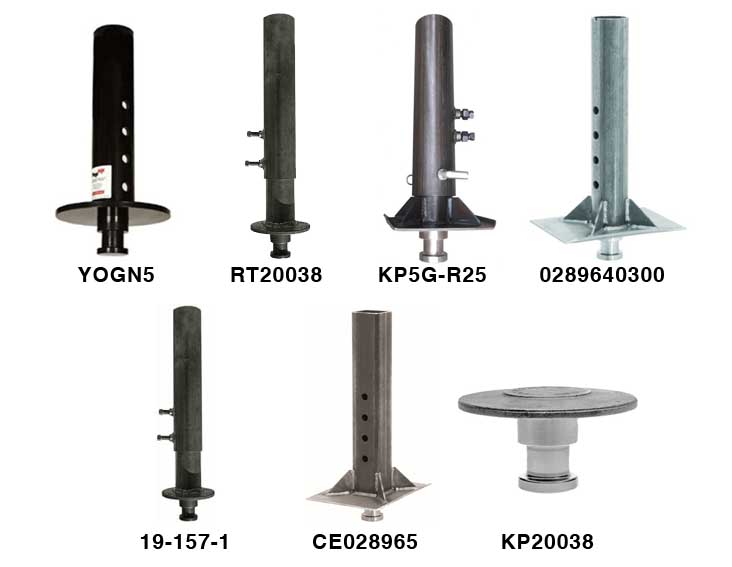

Gooseneck Kingpins
PART NUMBER | DESCRIPTION | CAPACITIES | BRAND |
---|---|---|---|
YOGN5 | 4” Adjustable Round Kingpin | 24,000lbs | Pop-Up |
YOGN6 | 4 ½” Adjustable Square Kingpin | 24,000lbs | Pop-Up |
RT20038 | 4” Adjustable Round Kingpin With Outer Sleeve | 25,000lbs | RT |
KP5G-R25 | 4” Adjustable Round Kingpin With Outer Sleeve And Bolster Plate | 25,000lbs | RAM |
0289640300 | 4” Adjustable Round Kingpin | 25,000lbs | Bulldog |
19-157-1 | 4” Adjustable Round Kingpin With Outer Sleeve | 30,000lbs | Buyers |
CE028965 | 4” Adjustable Square Kingpin | 30,000lbs | Bulldog |
KP20038 | Forged Weld-On Replacement Kingpin Head | — | Buyers |
