COUPLERS

Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.

  Disclaimer: Images may not always be accurate to the part #

 If you do not find what you are looking for, contact us.

couplers

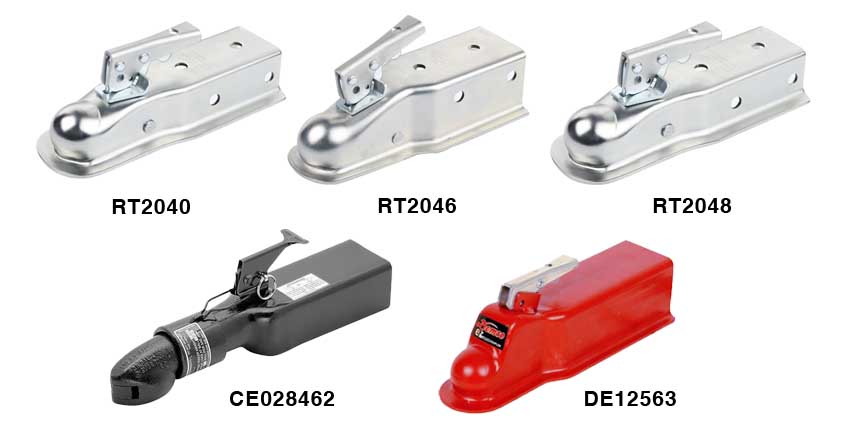

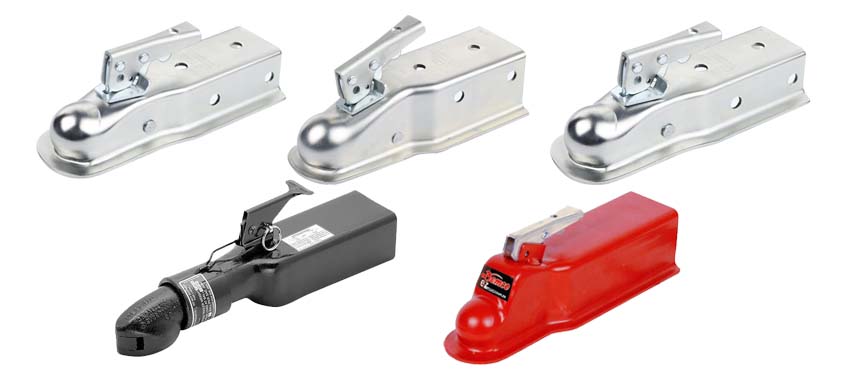

Straight Ball Couplers



PART NUMBERDESCRIPTIONBALL SIZETONGUE SIZECAPACITYFINISHBRAND
RT2040Straight Ball Coupler1 7/8″2” Square2,000lbsZincRT
CT-2002-ZStraight Ball Coupler1 7/8″2 1/2” Square2,000lbsZincRam
RT2046Straight Ball Coupler2”2” Square3,500lbsZincRT
RT2048Straight Ball Coupler2”2 1/2” Square3,500lbsZincRT
RT2050Straight Ball Coupler2”3” Square3,500lbsZincRT
RT2052Straight Ball Coupler2″3″ Square5,000lbsZincRT
CE028387Straight Ball Coupler2”3″ Square7,000lbsBlackBulldog
DE12563Straight Ball Coupler2”3” Square10,000lbsPrimedDemco
CE028462Straight Ball Coupler2 5/16”3” Square12,500lbsGreyBulldog
1755000Weld-On Straight Ball Coupler2 5/16”3” Square20,000lbsPrimedTitan
DE12662-97Weld-On Straight Ball Coupler2 5/16”3” Square21,000lbsPrimedDemco
couplers

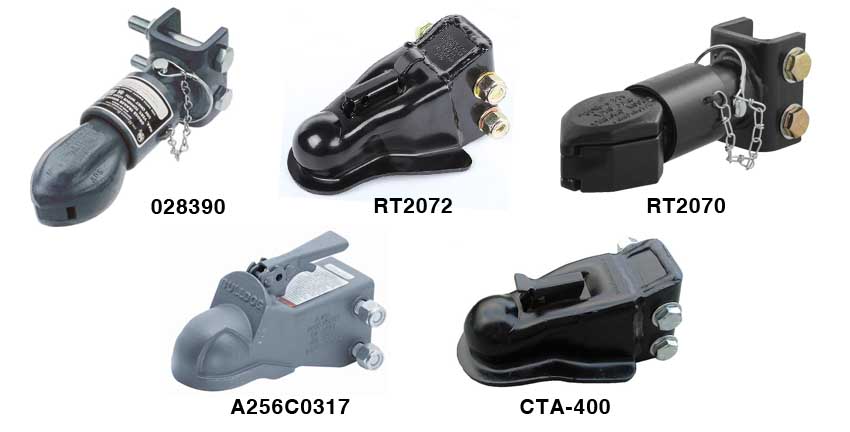

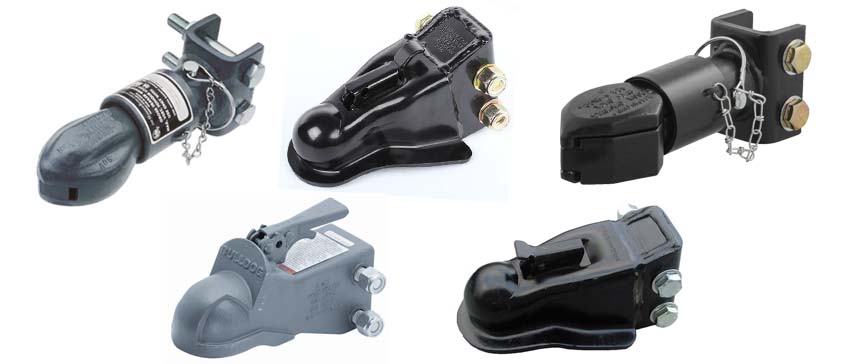

Adjustable Ball Couplers



PART NUMBERDESCRIPTIONBALL SIZECAPACITYFINISHBRAND
028390Adjustable Ball Coupler For 3” “C” Bracket2″7,000lbsBlackBulldog
A200C0317Adjustable Ball Coupler For 3” “C” Bracket2″8,000lbsPrimedBulldog
RT2072Adjustable Ball Coupler For 3” “C” Bracket2”8,000lbsBlackRT
RT2070Adjustable Ball Coupler For 3” “C” Bracket2 5/16”12,500lbsBlackRT
CE028630Adjustable Ball Coupler For 3” “C” Bracket2 5/16”12,500lbsPrimedBulldog
RT2074Adjustable Ball Coupler For 3” “C” Bracket2 5/16″14,000lbsBlackRT
A256C0317Adjustable Ball Coupler For 3” “C” Bracket2 5/16”14,000lbsPrimedBulldog
CTA-400Adjustable Ball Coupler For 3” “C” Bracket2 5/16”14,000lbsBlackRAM
028657Adjustable Ball Coupler For 3” “C” Bracket2 5/16”14,000lbsPrimedBulldog
0091550Adjustable Ball Coupler For 3” “C” Bracket2 5/16”15,000lbsNoneBuyers
DM15791-95Adjustable Ball Coupler For 3” “C” Bracket, EZ latch2 5/16”21,000lbsBlackDemco
couplers

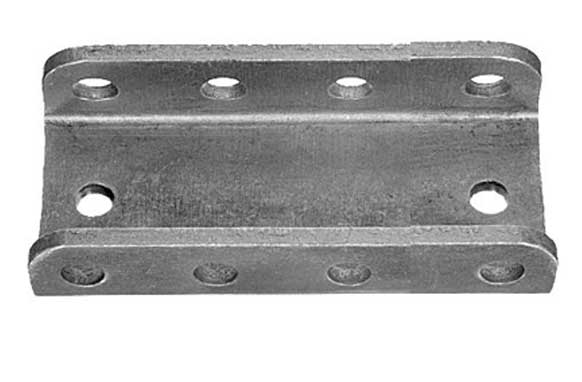

3″ “C” Brackets



PART NUMBERDESCRIPTION
RT20903” “C” Bracket for Adjustable Ball Couplers, 3-Position, 8” Height, 4 Holes
RT20923” “C” Bracket for Adjustable Ball Couplers, 5-Position, 11 ¾” Height, 6 Holes
couplers

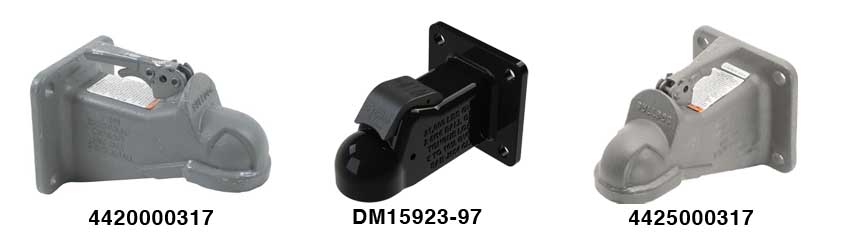

Bolt-On Trailer Couplers



PART NUMBERDESCRIPTIONBALL SIZECAPACITYFINISHBRAND
4420000317Bolt-On Trailer Coupler2 5/16″20,000lbsPrimedBulldog
DM15923-97Bolt-On Trailer Coupler2 5/16″21,000lbsBlackDemco
4425000317Bolt-On Trailer Coupler2 5/16″25,000lbsPrimedBulldog
couplers

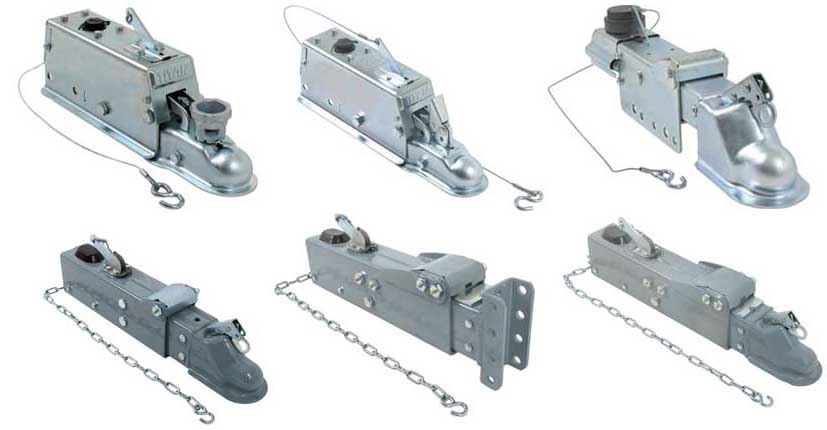

Titan Surge Brake Couplers



When replacing components on surge brake couplers, the replacement parts must be the same brand as the coupler itself; there is no interchangeability between brands regarding surge brake couplers.



PART NUMBERDESCRIPTIONMODELBALL SIZETONGUE SIZECAPACITY
4339700Multi-Fit Surge Brake Coupler, Zinc-Plated60Z1 7/8″ & 2″3″6,000lbs
4332900Lever-Lock Surge Brake Coupler, Zinc-Plated602″3″6,000lbs
4079200Surge Brake Coupler, Zinc-Plated62 5/16″3″8,000lbs
4846600183Bolt-On Surge Brake Coupler With 5-Position Adjustable Channel6—3″8,000lbs
1607500Complete Surge Brake Coupler Kit With Ball Coupler102 5/16″3″12,500lbs
RT20512Complete Surge Brake Coupler Kit With Pintle Ring On 3-Position Adjustable Channel20—3″10,000lbs
1899100Complete Surge Brake Coupler Kit With 3-Position Adjustable Channel20—3″20,000lbs
1521000Bolt-On Surge Brake Coupler With 5-Position Adjustable Channel202 5/16″3″20,000lbs
couplers

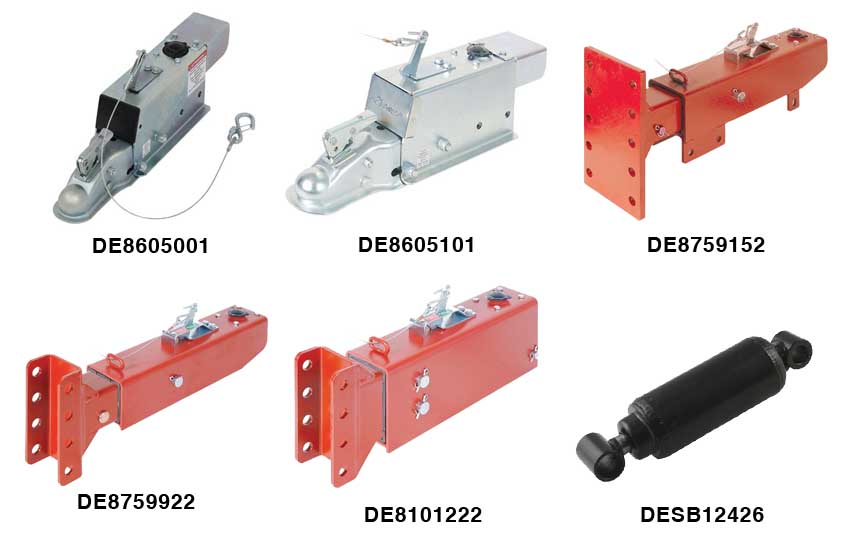

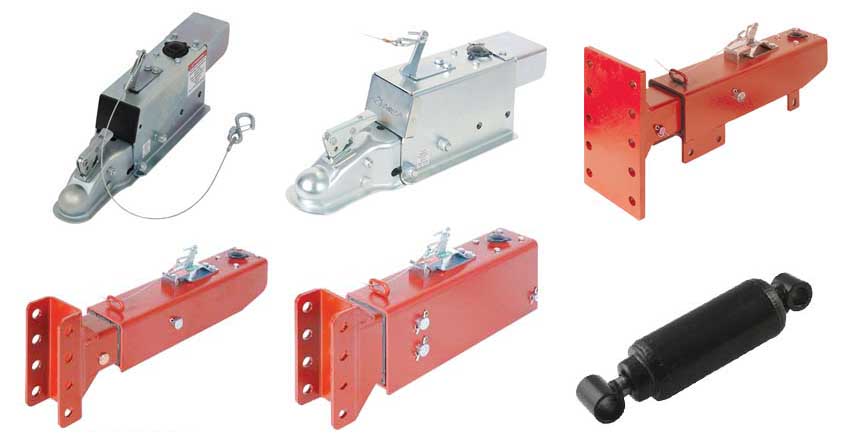

Demco Surge Brake Couplers



PART NUMBERDESCRIPTIONMODELBALL SIZETONGUE SIZECAPACITY
DE8705001Demco DA70 Actuator 7000lbsDA702″—7,000lbs
DE8705101Demco 8705101 7000lb Disc Brake Actuator87051012″3″7,000lbs
DE8759152Surge Brake Coupler With 3-Position Adjustable Plate, PrimedDA91—3″8,000lbs
DE8759922Surge Brake Coupler With 3-Position Adjustable Channel, PrimedDA91—3″8,000lbs
DE8608601Surge Brake Coupler For Drum Brakes, Zinc FinishDA862″3″8,600lbs
DE8608611Surge Brake Coupler For Disc Brakes, Zinc FinishDA862″3″8,600lbs
DE8101222Surge Brake Coupler With 3-Position Adjustable Channel For Drum Brakes, PrimedDA202″3″12,500lbs
1521000Master Cylinder For Drum Brakes
DESB12426Replacement Shock Absorber
couplers

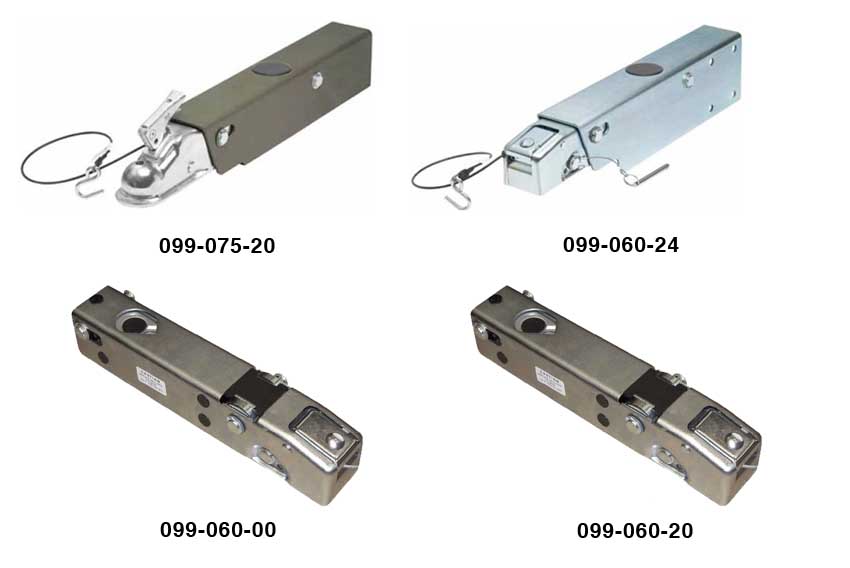

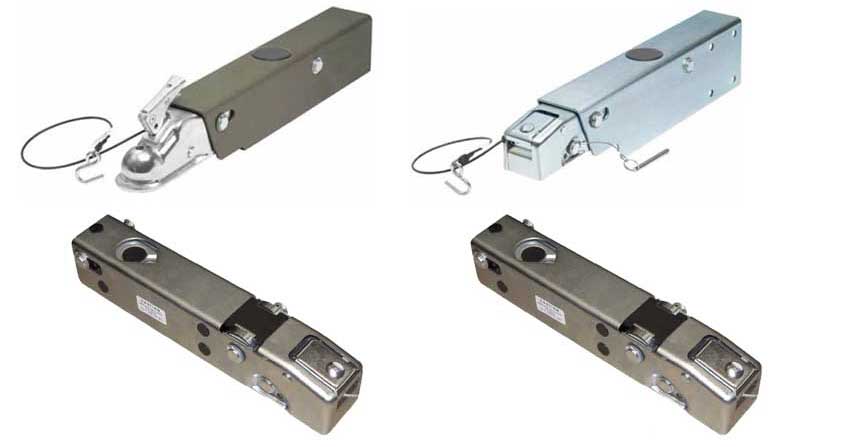

UFP Surge Brake Couplers



PART NUMBERDESCRIPTIONMODELBALL SIZETONGUE SIZECAPACITY
099-075-20Surge Brake Coupler For Disc Brake Tandem Axles, Plated Finish (Ideal For Marine Applications), Breakaway Kit Included, Factory-Installed Back-Up SolenoidA-752″3″7,500lbs
099-060-24Surge Brake Coupler For Disc Brake Tandem Axles, Plated Finish (Ideal For Marine Applications), Breakaway Kit Included, Factory-Installed Back-Up SolenoidA-602″3″7,500lbs
099-060-00Inner Member For UFP Drum Surge Brake Couplers7,500lbs
099-060-20Inner Member For UFP Disc Surge Brake Couplers7,500lbs
couplers

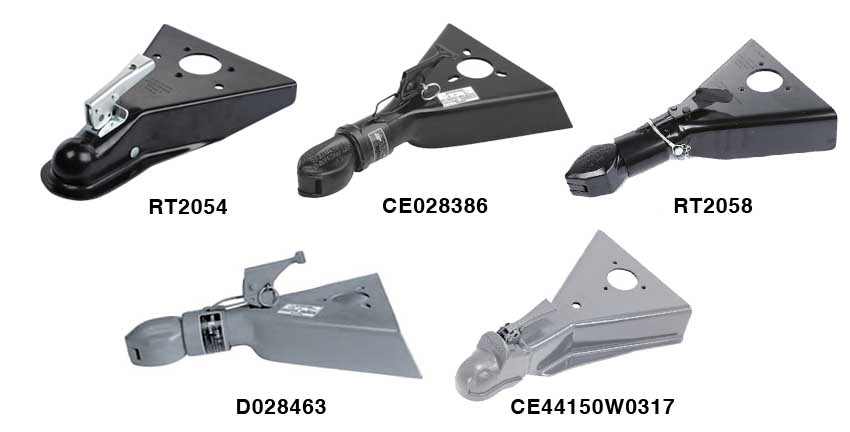

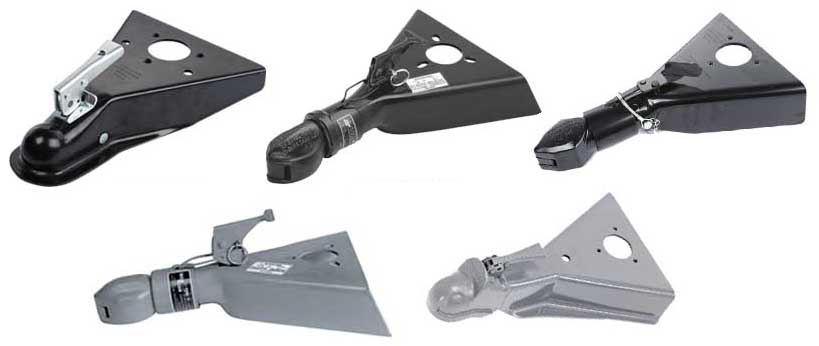

A-Frame Ball Couplers



PART NUMBERDESCRIPTIONBALL SIZETONGUE ANGLECAPACITYFINISHBRAND
RT2054A-Frame Ball Coupler2′50 °5,000lbsBlackRT
RT2056A-Frame Ball Coupler2′50 °5,000lbsOilyRT
RT2076A-Frame Ball Coupler2′50 °5,000lbsPrimedRT
CE028386A-Frame Ball Coupler2″50 °7,000lbsPrimedBulldog
RT2058A-Frame Ball Coupler2″50 °7,000lbsBlackRT
RT2078A-Frame Ball Coupler2″50 °8,000lbsOilyRT
RT2064A-Frame Ball Coupler2 5/16″50 °10,000lbsOilyRT
RT2062A-Frame Ball Coupler2 5/16″50 °10,000lbsBlackRT
D028463A-Frame Ball Coupler2 5/16″50 °12,000lbsPrimedBulldog
RT2068A-Frame Ball Coupler2 5/16″50 °14,000lbsOilyRT
RT2066A-Frame Ball Coupler2 5/16″50 °14,000lbsBlackRT
CE44150W0317A-Frame Ball Coupler2 5/16″50 °15,000lbsPrimedBulldog
DE17063-97A-Frame Ball Coupler2 5/16″50 °21,000lbsRedDemco
