TIRES & RIMS

Trailer wheels & tires are specifically engineered and designed for use on trailers only.  Trailer tires are designated “ST”, which is stamped on the tire as part of the tire description.  The “ST” designation relates primarily to the stiffer sidewall construction, allowing the tire to carry more weight than a similar size automotive or “P” designated passenger car tire.



The “ST” tires must meet or exceed the carrying capacity of the axle that it is used on. The main consideration when buying trailer tires is to make sure that they meet the minimum weight carrying capacity. Trailer wheels are also specifically designed to be used only on trailers; they have specific weight carrying capacities, pilot diameters, and wheel offset dimensions.  Most but not all trailer wheels are “O” offset.  This means that the center of the rim is also the center of the tire. Trailer rims are not compatible in any way with automotive applications.
Download Bolt Circle Template
Click the button above to download our template

Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.

 Disclaimer: Images may not always be accurate to the part #

 If you do not find what you are looking for, contact us.

Mounted Tires & Rims

tires & rims

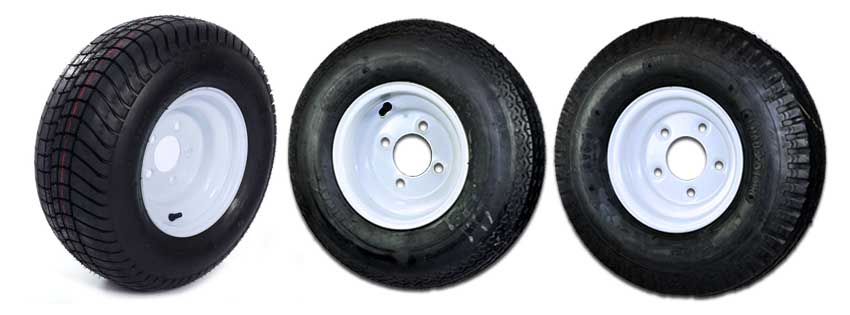

8″ & 10″



PART NUMBERDESCRIPTIONRIM TYPETIRE DESCRIPTIONBOLT PATTERNPILOT DIA.CAPACITY
TWRRDG3727-W4Mounted Tire & RimPlain White20 ½” X 8” X 10” Bias4 on 4”2.81″1,100lbs
Download Bolt Circle Template
tires & rims

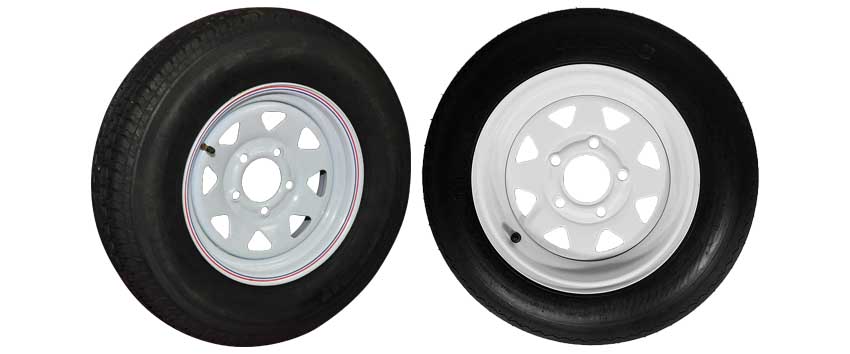

12″ & 13″



PART NUMBERDESCRIPTIONRIM TYPETIRE DESCRIPTIONBOLT PATTERNPILOT DIA.CAPACITY
TWRRDG3728-WS4Mounted Tire & RimWhite Spoke4.80” X 12” Bias4 on 4″2.56″865lbs
TWRRDG3728-WS5Mounted Tire & RimWhite Spoke4.80” X 12” Bias5 on 4 ½”3.19″865lbs
TWRRDG3728-SGA5Mounted Tire & RimGalvanized Spoke4.80” X 12” Bias5 on 4 ½”3.19″865lbs
TWRRDG3730-WS4Mounted Tire & RimWhite Spoke5.30” X 12” Bias4 On 4”2.56″1,045lbs
TWRRDG3730-WS5Mounted Tire & RimWhite Spoke5.30” X 12” Bias5 on 4 ½”3.19″1,045lbs
TWRRDG3730-SGA5Mounted Tire & RimGalvanized Spoke5.30” X 12” Bias5 On 4 ½”3.19″1,045lbs
TWRRDG25-700-SGA5Mounted Tire & RimGalvanizedST175/80R13 Radial5 On 4 ½”3.19″1,360lbs
913-545-613Mounted Tire & RimWhite SpokeST175/80R13 Radial5 On 4 ½”3.19″1,360lbs
Download Bolt Circle Template
tires & rims

14″ & 15″



PART NUMBERDESCRIPTIONRIM TYPETIRE DESCRIPTIONBOLT PATTERNPILOT DIA.CAPACITY
914-545-600Mounted Tire & RimWhite ModularST205/75R14 Radial5 on 4½”3.19″1,760lbs
914-545-601Mounted Tire & RimWhite SpokeST205/75R14 Radial5 on 4 ½”3.19″1,760lbs
914-545-602Mounted Tire & RimGalvanized SpokeST205/75R14 Radial5 on 4 ½”3.19″1,760lbs
915-545-607Mounted Tire & RimWhite ModST205/75R15 Radial5 on 4 ½”3.19″1,820lbs
915-545-649Mounted Tire & RimGalvanized SpokeST205/75R15 Radial5 On 4 ½”3.19″1,820lbs
915-545-604Mounted Tire & RimWhite SpokeST225/75R15 Radial5 On 4 ½”3.19″2,540lbs
915-655-603Mounted Tire & RimWhite SpokeST225/75R15 Radial6 On 5 ½”4.28″2,540lbs
915-655-600Mounted Tire & RimWhite ModST225/75R15 Radial6 On 5 ½”4.28″2,540lbs
Download Bolt Circle Template

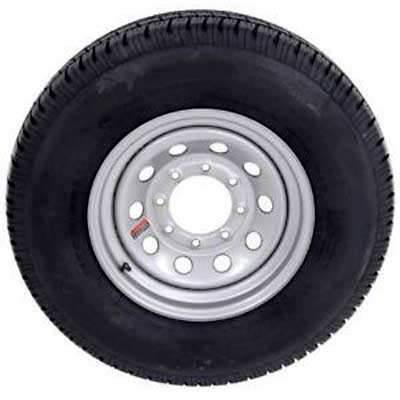

tires & rims

16″



PART NUMBERDESCRIPTIONRIM TYPETIRE DESCRIPTIONBOLT PATTERNPILOT DIA.CAPACITY
916-655-601Mounted Tire & RimWhite ModST235/80R16 Radial6 On 5 ½”4.28″3,525lbs
916-865-605Mounted Tire & RimWhite ModularST235/80R16 Radial8 On 6 ½”4.75″3,525lbs
916-865-611Mounted Tire & RimWhite SpokeST255/80R16 Radial8 On 6 ½”4.90″3,525lbs
916-865-601Mounted Tire & RimWhite SpokeST235/85R16 Radial8 On 6 ½”4.90″3,900lbs
916-865-603Mounted Tire & RimWhite ModularST235/85R16 Radial8 On 6 ½”4.90″3,900lbs
916-865-604Mounted Tire & RimGrey DuallyST235/85R16 Radial8 On 6 ½”4.75″3,900lbs



*FOR INQUIRIES REGARDING 17.5″ TRAILER WHEELS & TIRES, PLEASE CONTACT US
Download Bolt Circle Template

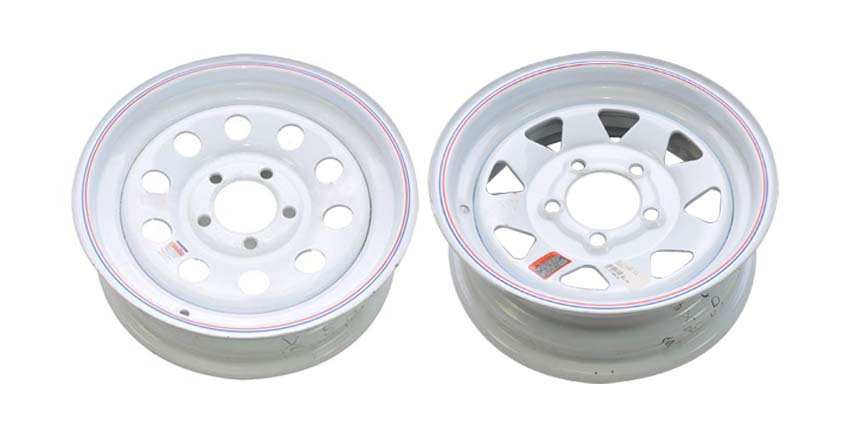

Trailer Rims Only

tires & rims

8″ & 10″



PART NUMBERDESCRIPTIONDIAMETER & WIDTHBOLT PATTERNPILOT DIA.CAPACITY
9700431Trailer Rim, Plain White8” X 3 ¾”4 on 4″2.65″900lbs
9700255Trailer Rim, Plain White8” X 3 ¾”5 On 4 ½”2.81″900lbs
9700436Trailer Rim, Plain White10” X 6″4 on 4″2.81″1,535lbs
9700437Trailer Rim, Plain White10” X 6″5 On 4 ½”2.81″1,535lbs
Download Bolt Circle Template

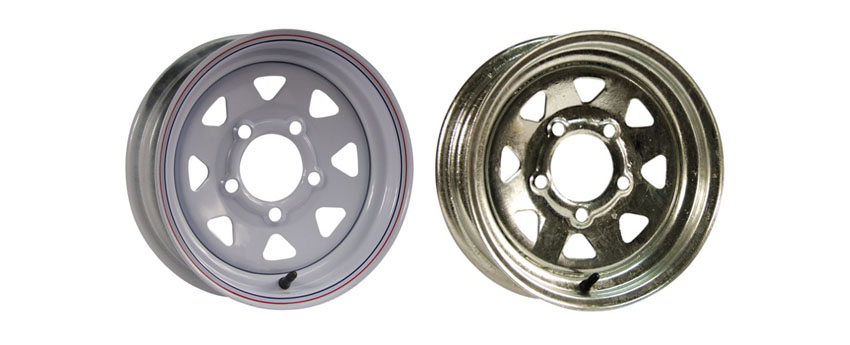

tires & rims

12″ & 13″



PART NUMBERDESCRIPTIONDIAMETER & WIDTHBOLT PATTERNPILOT DIA.CAPACITY
9700496Trailer Rim, White Spoke12” X 4”4 on 4″2.56″1,045lbs
9700890Trailer Rim, White Spoke12” X 4”5 On 4 ½”3.19″1,045lbs
9700062Trailer Rim, Galvanized13” X 4 ½”5 On 4 ½”3.19″1,660lbs
9700900Trailer Rim, White Spoke13” X 4 ½”4 on 4″2.91″1,669lbs
9700900-KWTrailer Rim, White Mod13” X 4 ½”4 on 4″2.91″1,669lbs
Download Bolt Circle Template
tires & rims

14″ & 15″



PART NUMBERDESCRIPTIONDIAMETER & WIDTHBOLT PATTERNPILOT DIA.CAPACITY
9700830Trailer Rim, White Modular14” X 5.5”5 On 4 ½”3.19″1,870lbs
9700905Trailer Rim, White Spoke14” X 5.5”5 On 4 ½”3.19″1,870lbs
9700935Trailer Rim, White Spoke15” X 6”5 On 4 ½”3.19″2,150lbs
9700845Trailer Rim, White Mod15” X 6”5 On 4 ½”3.19″2,150lbs
9700935Trailer Rim, White Spoke15 X 6”6 On 5 ½”4.27″2,600lbs
Download Bolt Circle Template

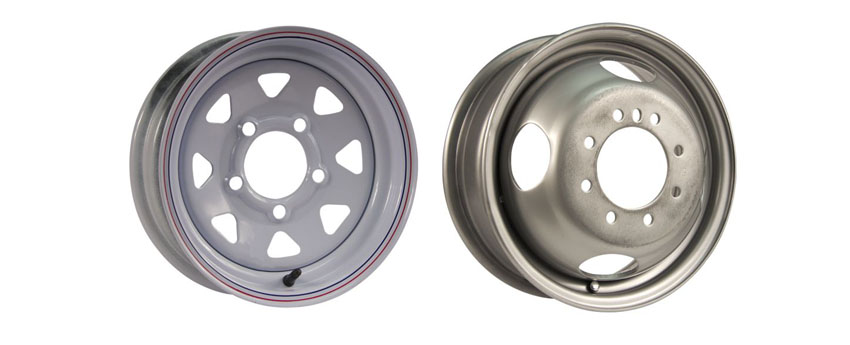

tires & rims

16″



PART NUMBERDESCRIPTIONDIAMETER & WIDTHBOLT PATTERNPILOT DIA.CAPACITY
9700960Trailer Rim, White Spoke16” X 6”6 On 5 ½”4.27″3,200lbs
9700860Trailer Rim, White Mod16” X 6”6 On 5 ½”4.27″3,200lbs
9700865Trailer Rim, White Modular16″ X 6”8 On 6 ½”4.75″3,750lbs
9700605Trailer Rim, Dually, Silver, 5 ½” Offset Out16″ X 6”8 On 6 ½”4.75″3,200lbs
9700620Trailer Rim, Dually, Silver, 5 ½” Offset Out16″ X 6”8 On 6 ½”4.88″3,200lbs
Download Bolt Circle Template

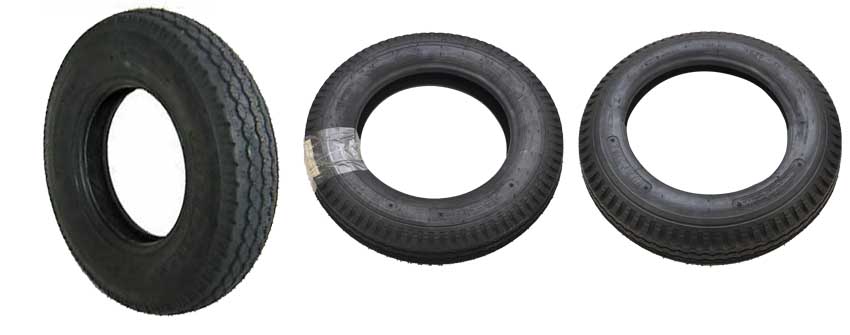

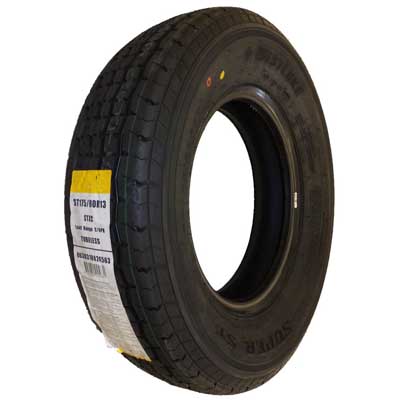

Trailer Tires

tires & rims

Radial Tires



PART NUMBER

DESCRIPTIONTIRE TYPE

LOAD RANGE

CAPACITY

9300004-TTTrailer TireST175/80R13 Radial“C”1360Lbs
9300314-TTTrailer TireST205/75R14 Radial“C”1760Lbs
9300315-TTTrailer TireST205/75R15 Radial“C”1820Lbs
9300319-TTTrailer TireST225/75R15 Radial“D”2540Lbs
9300041-TTTrailer TireST235/80R16Radial“E”3525Lbs
9300325Trailer TireST235/85R16 Radial“G”3900Lbs
aluminum rims

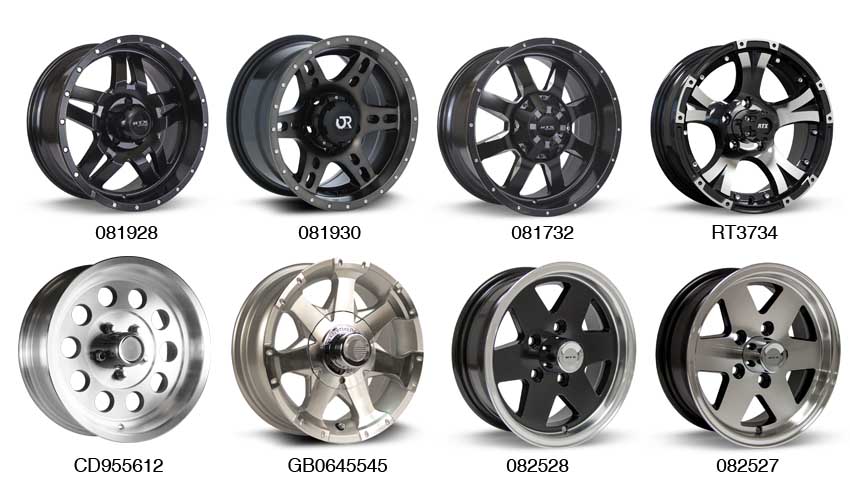

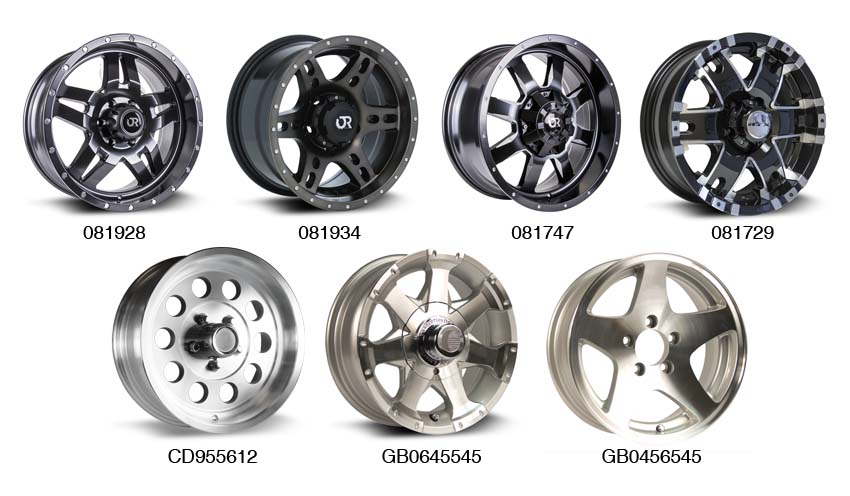

Aluminum Rims



PART NUMBER

SIZEDESCRIPTIONBOLT PATTERN

CAPACITY

MESA / RTX

08192815″ x 6″Mesa 15×6 5-4.5 OP 3.19 Satin Black5 on 4.52150lbs
08198915″ x 6″RTX 081989, Black Machined5 on 4.52750lbs

RIDGELINE / RTX

08173215″ x 6″RTX 15×6 5-4.5 OP 3.19 Satin Black Milled5 on 4.52150lbs
08173315″ x 6″Ridgeline 15×6 6-5.5 OP 4.25 Satin Black6 on 5.52830Lbs
08174515 x 6″RTX 16×7 6-5.5 OP 4.25 Satin Black5 on 4.52750lbs

MAXLYNE

RT373415″ x 6″RTX 15×6 5-4.5 Black Machined5 on 4.52750lbs
RT373616″ x 7″RTX 16×7 8-6.5 Black Machined8 on 6.54450lbs

AXIS / RTX

08199015″ x 6″RTX 15×6 6-5.5 Black Machined6 on 5.52750lbs

MODULAR – SERIES 3

RT381815″ x 6″Aluminium Rim Mod 15×6 0 Offset 3.19 2150lb Cap.5 on 4.52150lbs
CD95566015″ x 6″Aluminium Rim Mod 15×6 0 Offset 4.25 2830lb Cap.6 on 5.52830lbs
CD95776016″ x 7″Ceco Series 95 Modular Rim6 on 5.53200lbs
CD95778016″ x 7″Aluminium Rim Mod 16×7 0 Offset 5.12 3750lb Cap.6 on 5.53750lbs

SERIES 6

GB065665515″ x 6″Aluminium Rim Series 6 15×6 0 Offset 4.25 2830lbs Cap.6 on 5.52830Lbs

MITE

08252813″ x 5″Mite 13×5 0 Offset 2.95 1900lbs Cap. Satin Black5 on 4.51660Lbs
08252713″ x 5″Mite 13×5 0 Offset 2.95 2150lbs Cap. Black Machined5 on 4.51660Lbs
Download Bolt Circle Template
tires & rims

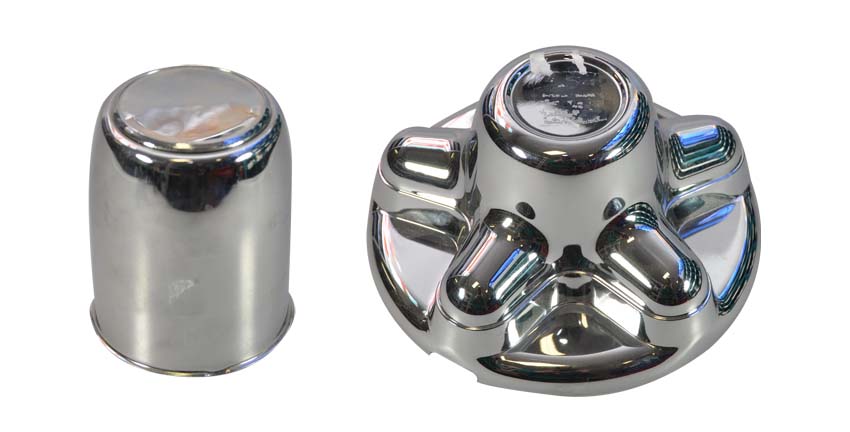

Center Caps



PART NUMBER

DESCRIPTION

295EZ

Chrome Center Cap 2.95′ Diameter with Plug
CD106EZC

Chrome Cap For 5 Bolt White & Chrome For Spoke Wheel w/ 3.195 Diameter Centre

CD120EZC

Closed End Chrome Cap For 5 Bolt w/ 3.30 Diameter Centre
CD104EZC

Chrome Cap For 6 Bolt White & Chrome For Spoke Wheel w/ 4.25′ Diameter

490EZ-SS

Stainless Steel Center
PHQT545CHS-CA

Hub Cover, 5 on 4.5′, 5 on 4 1/2′ Bolt Pattern, Chrome

PHQT655CHN

Hub Cover, 6 Bolt Chrome Plated Plastic
PHQT765CHN

Hub Cover, 8 Bolt 13/16′ Lug

GB06-14CAP

Replacement Hub Cover 14″

GB06-15CAP

Replacement Hub Cover 15″
